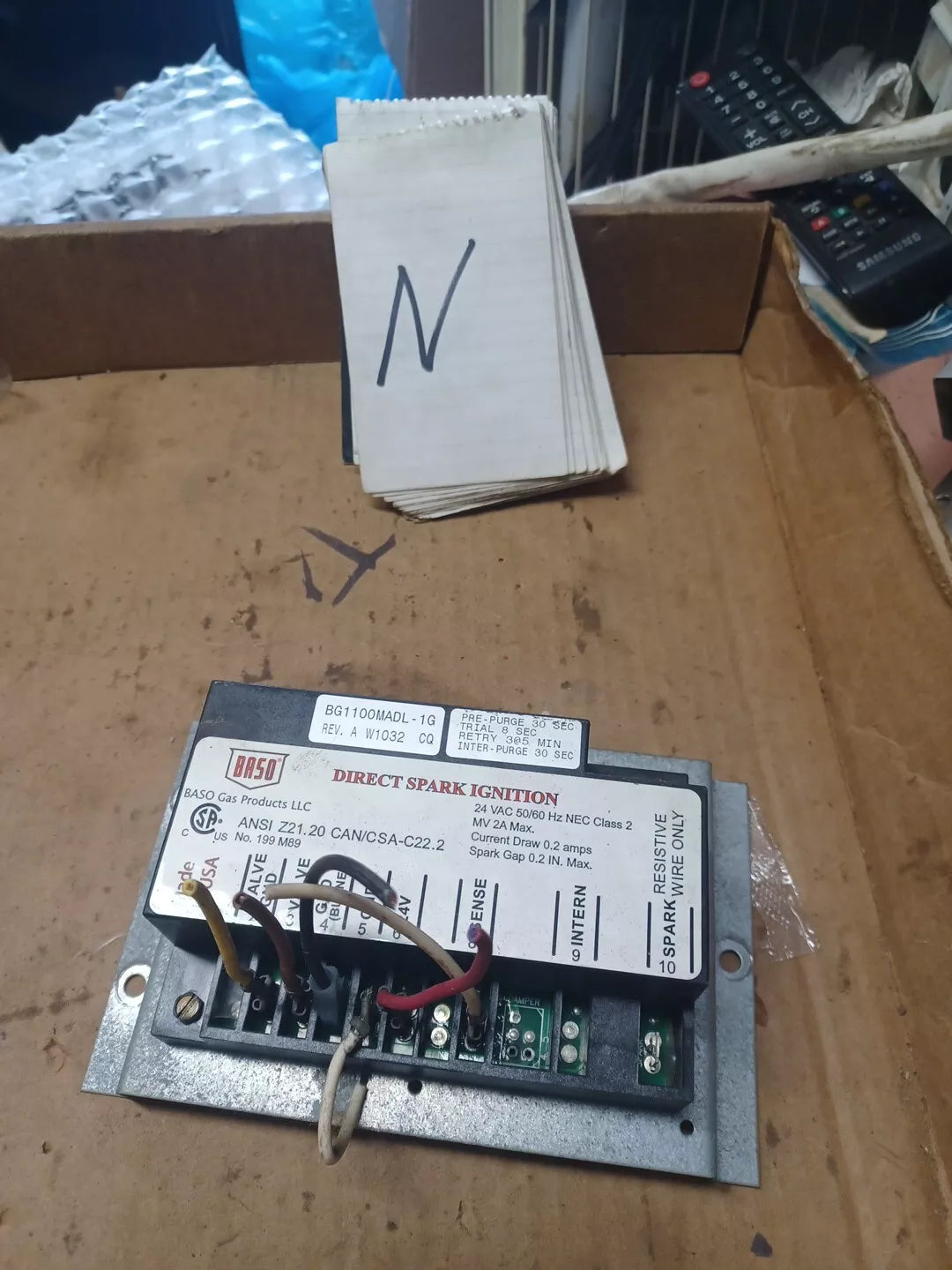

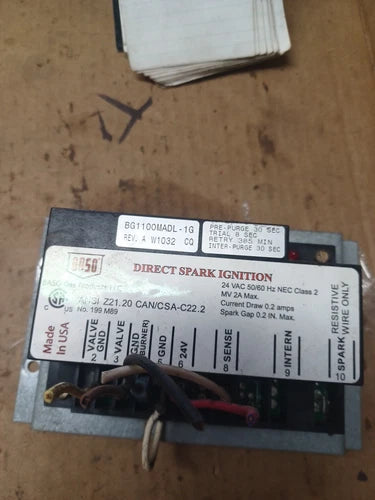

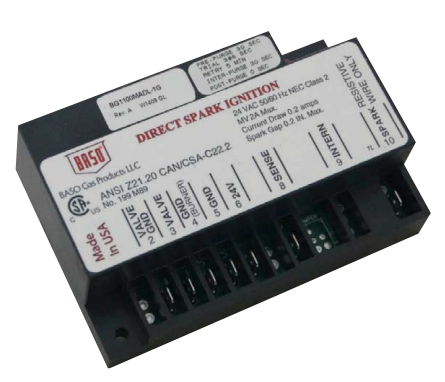

BASO BG1100MADL-1G Direct Spark Ignition Module

Product Description

The BASO BG1100MADL-1G is a direct spark ignition module specifically crafted for furnace heating systems. This unit is microprocessor-controlled, enabling precise software timing functions. Key features include ignition sequencing, flame monitoring, and a safety shutoff mechanism.

• Operates on 24 volts with a contact rating of 2 amps.
• Allows three ignition attempts, each with an 8-second trial time.
• Includes a 30-second prepurge time and a 300-second recycle time.

Product Highlights

This module is designed for seamless integration into furnace heating systems, ensuring reliable ignition and consistent performance.

Product Information

Standard Information

• Brand: Baso
• Type: Furnace

Technical Specifications

• Model: BG1100MADL-1G
• MPN: ANSI Z21.20 CAN/CSA-C22.2
• Vendor Name: Baso
• URI Part Number: BG1100MADL1G
• Vendor Part Number: BG1100MADL1G
• Shipping Weight: 0.75 lbs
• Contact Rating: 2 amps
• Ignition Attempts before Lockout: 3
• Ignition Trial Time: 8 seconds
• Prepurge Time: 30 seconds
• Voltage: 24 volts
• Recycle Time: 300 seconds
• Direct Replacement: C161KKD-1C BASO
