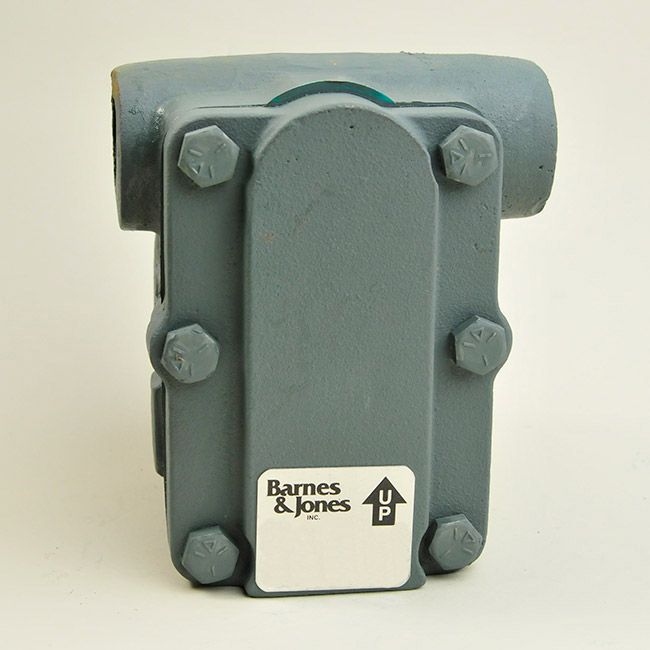

Barnes & Jones FTI2015-5 Float & Thermostatic Steam Trap 15 PSI

Product Description

The Barnes & Jones FTI2015-5 Float & Thermostatic Steam Trap features a 1-1/4 inch trap connection configured in an in-line horizontal pattern. Ideal for steam heating systems, this unit facilitates efficient steam entry and condensate discharge on the same side, enhancing system performance. Crafted from durable cast iron with stainless steel internals, this model ensures reliability under a maximum operating pressure of 15 psi. Capable of handling 1,249 pounds per hour, the FTI2015-5 is designed for continuous drainage across low to high pressure steam mains.

• Efficient air and non-condensable gas venting capabilities.
• Robust cast iron construction with stainless steel internal components.
• Optimal for varying load conditions in modulating pressure environments.

Product Highlights

This steam trap is frequently employed to replace traditional bucket traps in heating systems, thanks to its superior air discharging capability, crucial during system start-up or low-pressure operation.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: FTI2015-5

Technical Specifications

• Material: Cast Iron, Stainless Steel
• Connection Size: 1-1/4 inch
• Configuration: In-Line Horizontal
• Max Pressure: 15 psi
• Capacity: 1,249 pounds per hour
• Weight: 11 pounds
