Barnes & Jones FT2015-3 3/4 H-Pattern Float & Thermostatic Steam Trap 15 PSI

Product Description

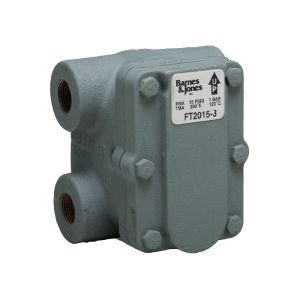

The Barnes & Jones float and thermostatic steam trap, model FT2015-3, features a three-quarter inch trap connection configured in an H-pattern. This allows the steam to enter from either side of the trap while the condensate can discharge from the same or opposite side. The FT2015-3 is made from cast iron and supports a maximum operating pressure of 15 psi.

• Designed for low, medium, and high pressure steam systems
• Continuous drainage ensures efficiency
• Stainless steel internal parts enhance durability

Product Highlights

This steam trap is effective for heat exchange applications requiring quick venting of air and non-condensable gases. It performs well under varying pressure conditions and is designed for easy maintenance.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: FT2015-3

Technical Specifications

• Steam Trap Type: Float & Thermostatic
• Body Material: Cast Iron
• Steam Trap Connection Size: 3/4 inch
• Steam Trap Mounting: H-Pattern, Same Side
• Max Pressure: 15 psi
• Weight: 11.40 lbs
