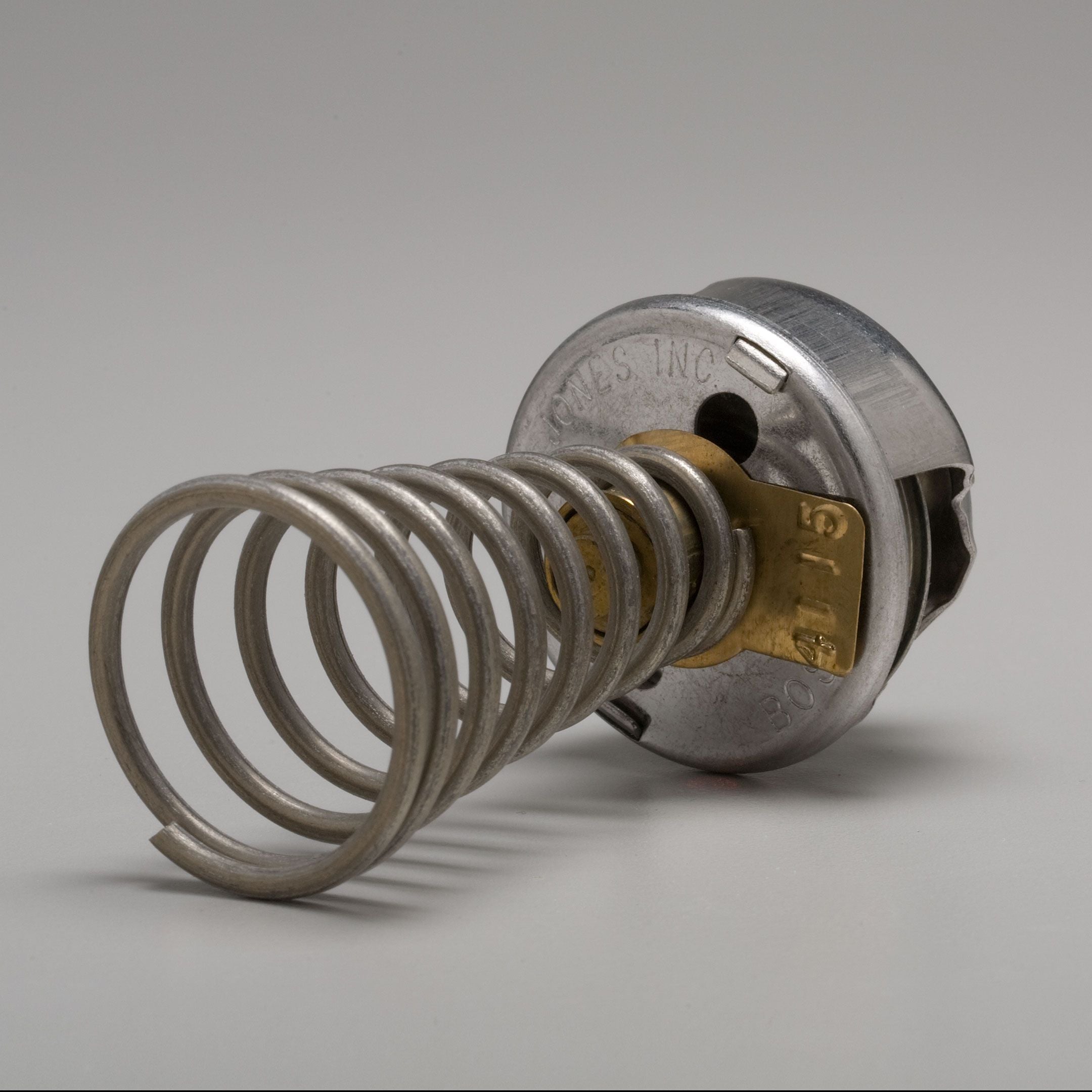

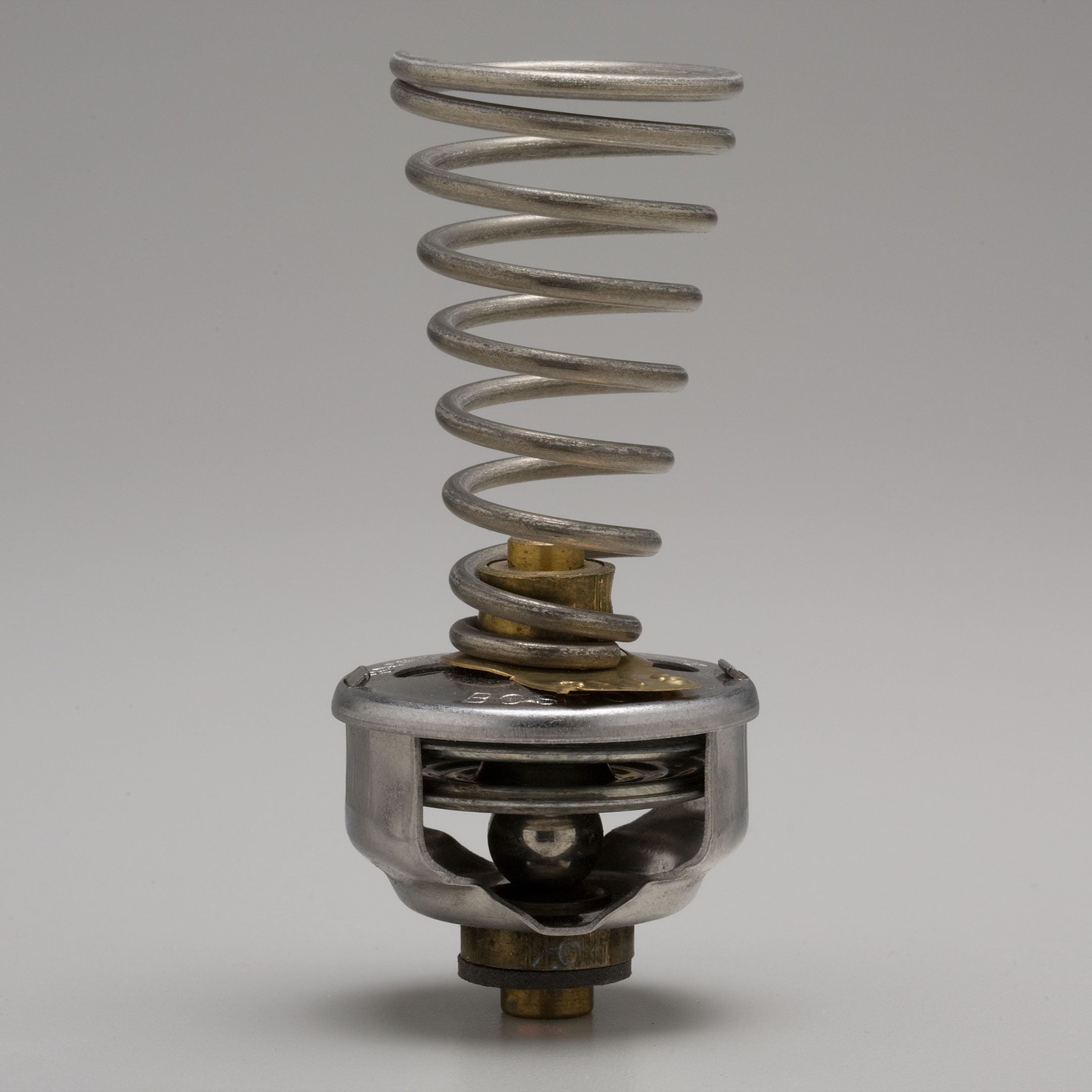

Barnes & Jones 4115 Cage Unit for Spirax-Sarco E Traps

Product Description

The Barnes & Jones 4115 is a robust cage unit designed for Spirax-Sarco 3/4 inch E steam traps. This unit is engineered to replace the existing thermostat and seat, providing a high level of performance and reliability.

• Heavy-duty thermostatic element encased in a protective stainless steel cage.
• Precisely calibrated for assured functionality.
• Integrated high-tension spring to maintain cover position and prevent leakage.

Product Highlights

The 4115 unit features a special design where the thermostatic element expands upon sensing steam, securely closing the internal seat to contain steam. As the steam converts back to condensate, the element contracts and allows the condensate to escape, ensuring efficient operation and energy conservation.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: 4115

Technical Specifications

• Compatibility: Specifically made for Spirax-Sarco 3/4 inch seat E traps
• Construction: Stainless steel cage, thermostatic element
• Function: Thermostatic control with automatic opening and closing
