Barnes & Jones 3834 - Cage Unit for Barnes & Jones Traps

Product Description

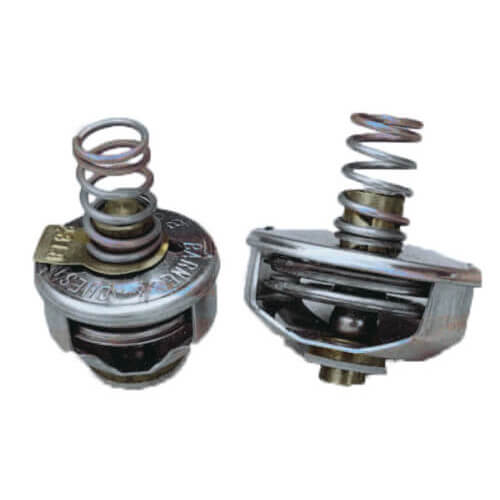

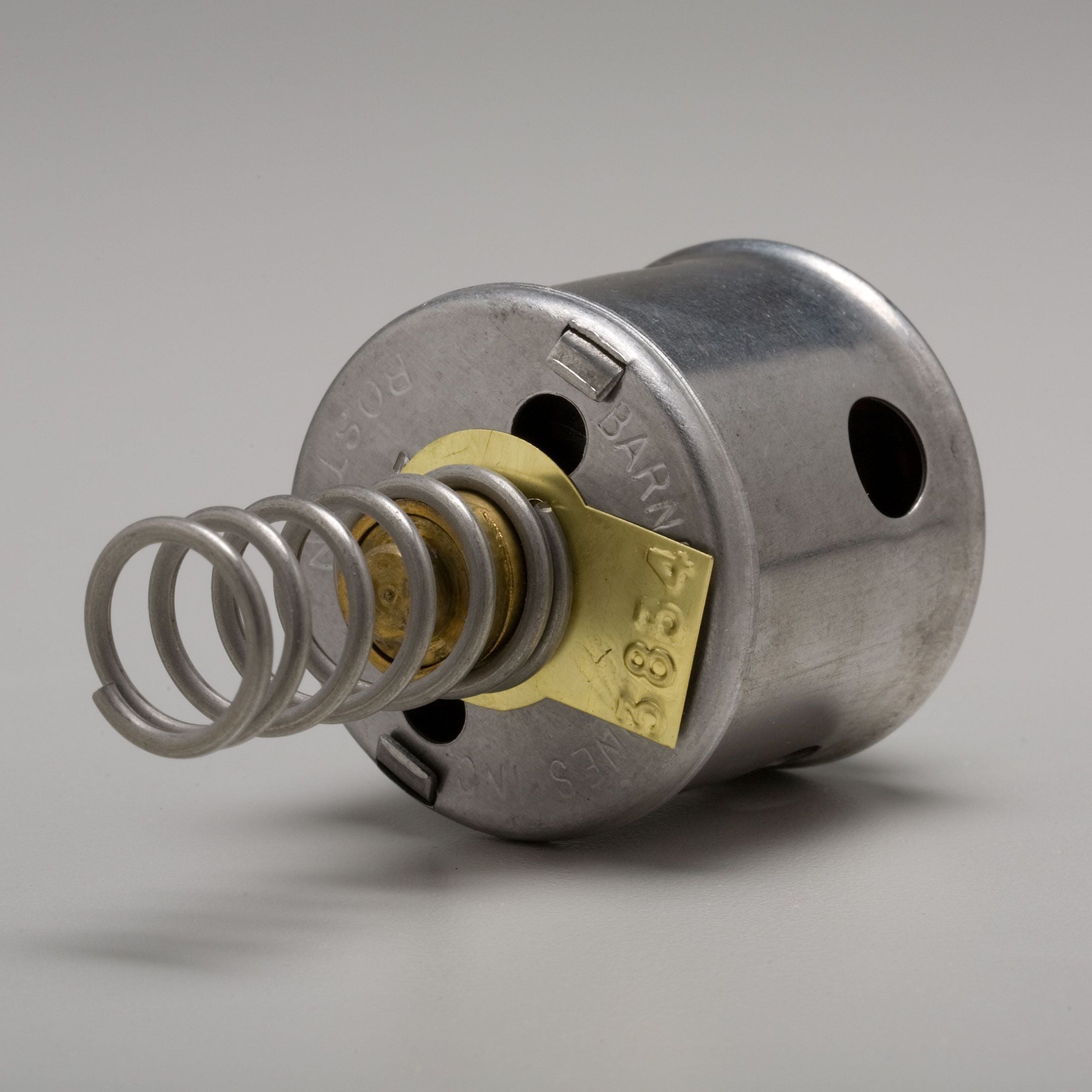

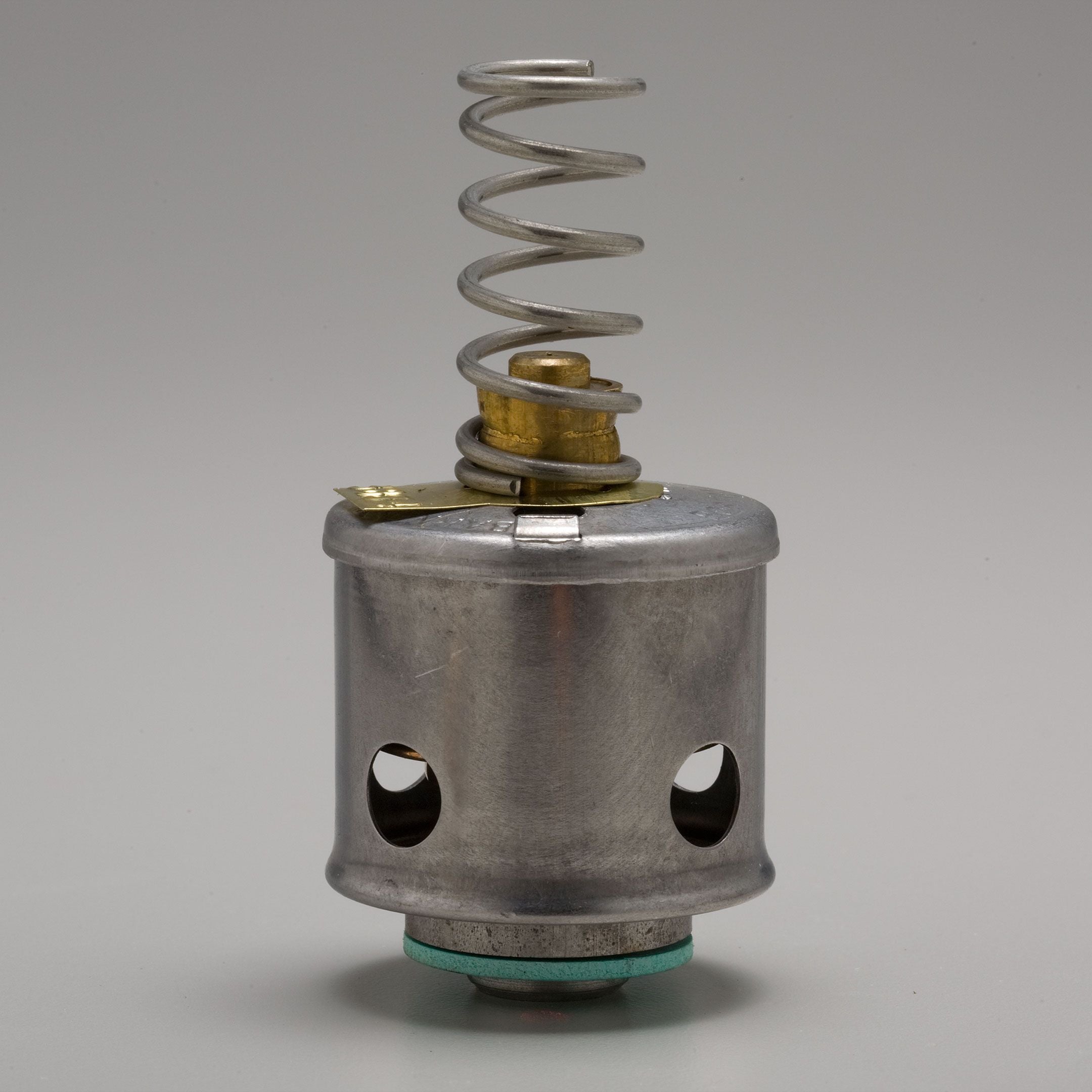

The Barnes & Jones 3834 cage unit is designed for use with Barnes & Jones GW and E traps. This unit replaces the existing thermostat and seat, featuring a heavy-duty thermostatic element that is encapsulated in a stainless steel cage. The cage is designed to ensure reliable opening and closing. The unit is secured by a protrusion that fits into the trap’s orifice, while a high tension spring maintains pressure on the cover to prevent movement. When steam is detected, the thermostatic element expands, sealing the ball plunger against its internal seat. This containment remains until the steam condenses into liquid, at which point the element contracts to allow drainage of the condensate.

• Replaces existing thermostat and seat
• Precise calibration for reliable performance
• Compatible with several models of steam traps

Product Highlights

This cage unit is vital for maintaining the efficiency of steam traps, ensuring effective steam containment and condensate drainage.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: 3834

Technical Specifications

• Model Compatibility: 2EA, 2ES, 2GW, 3GW, 2L, 3L, 2V, 3V
• New Cover Required: No
• Weight: 0.20 lbs
