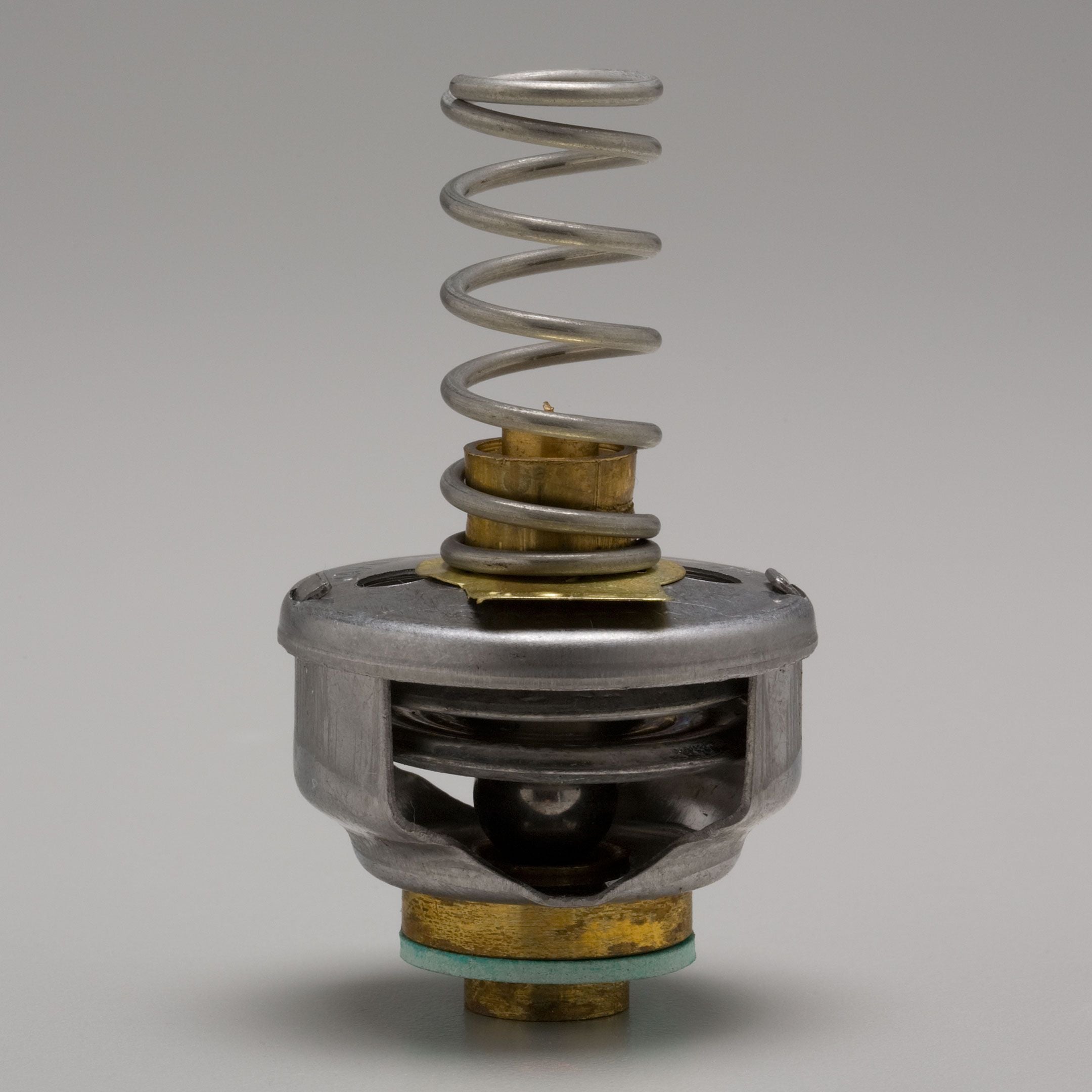

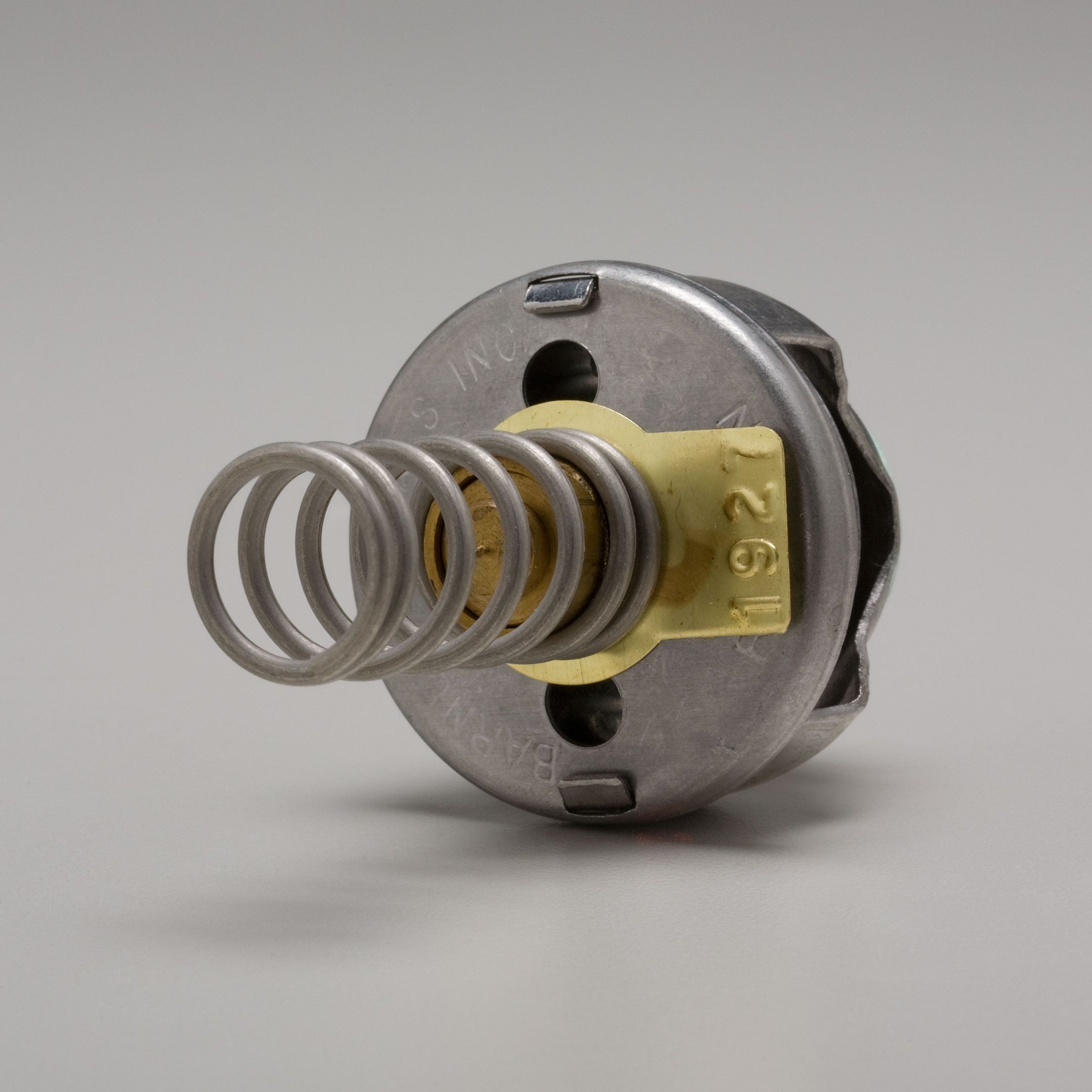

Barnes & Jones 1927K Steam Trap Cage Unit for Marsh 1, 1V, 8, 12, 508, 512

Product Description

The Barnes & Jones 1927K Cage Unit, designed for Marsh steam traps models 1, 1V, 8, 12, 508, and 512, ensures efficient operation and durability. This essential maintenance part for steam traps demands a new cover upon initial installation.

• Heavy-duty design for long-term use
• Precisely calibrated for reliable performance
• Stainless steel construction enhances durability

Product Highlights

The cage unit replaces existing thermostatic elements and seats, characterized by a robust stainless steel cage. It features a dynamic thermostatic element that reacts to steam presence by expanding and contracting, thus allowing for effective steam containment and subsequent release of cooled condensate.

Product Information

Standard Information

• Brand: Barnes & Jones
• MPN: 1927K

Technical Specifications

• Manufacturer Repaired: Marsh
• Steam Trap Models Repaired: 1, 1V, 8, 12, 508, 512
• New Cover Required: Yes
• Weight: 0.20 lbs
