Bapi BA/H200OBB2NOFOAM Humidity

Product Description

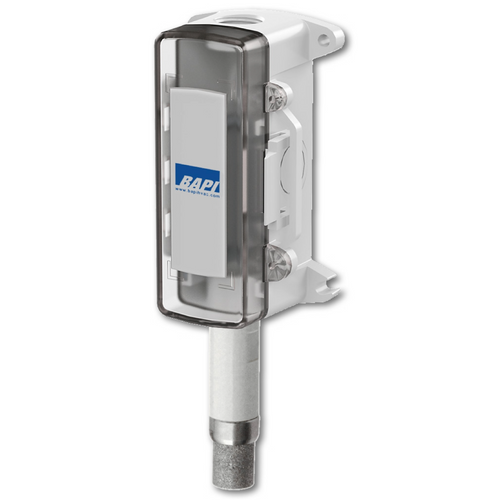

The BAPI BA/H200OBB2NOFOAM series humidity transmitters are designed for HVAC systems. Room sensors are available in the traditional Delta style enclosure or the new BAPI STAT 4. Duct Units feature medical-grade closed cell foam to seal the probe insertion hole and to absorb vibration. Outside Air Units have etched Teflon leadwires and are built to withstand high humidity and condensation.

• Popular room housing
• 2% Accuracy
• Duct and OSA NEMA 4 housing

Product Highlights

The BAPI BA/H200OBB2NOFOAM humidity transmitters feature 24 VDC or 24 VAC power, field-selectable 4-20 mA, 0-10V, or 0-5V signal, and are field calibratable.

Product Information

Standard Information

• Brand: BAPI
• Manufacturer Part Number: BA/H200OBB2NOFOAM

Technical Specifications

• Accuracy: 2% from 20% to 95% RH
• Supply Voltage: 15-28 VAC/VDC
• Signal Output: 4-20 mA @ 700 , 0-5/10 VDC @ 10k min
• Sensing Technology: Resistive with ceramic substrate
• Sensor Protection: Room: Room Gore-Tex Duct/OSA: 80 micron stainless steel sintered filter
• Operating Humidity: 0-100%, non-condensing
• Operating Temperature: Room: 32 to 122F (0 to 50C) Duct/OSA: -40 to 158F (-40 to 70C)
• Enclosure Rating: Room: BAPI stat 4/Delta: NEMA 1, ABS Plastic, UL94V-0 WP: NEMA 3R, Weatherproof, cast aluminum
• Wiring Terminations: Four wire, 16 to 22 AWG terminals
• Approvals: CE, RoHS
• Sensor Type: Outside Air
• Humidity Element: 2%
• Output Signal: 0-5 VDC
• Temperature Element: None
• CO2 Element: None
• Display: No Display
• VOC Element: None
• Probe Length: 3
• Enclosure: NEMA 4X Enclosure
• Supported Protocols: None
