Bapi BA/10K2H310OBB Humidity

Product Description

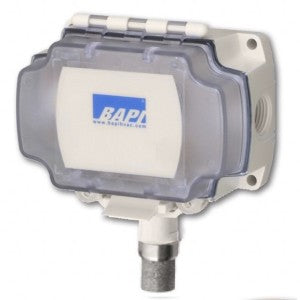

The BAPI BA/10K2H310OBB is a humidity transmitter with a 10K-2 thermistor and a 0 to 10 V output, designed for outside air applications and housed in a BAPI box. It is ideal for economizer control, psychrometric calculations, enthalpy, dew point, and wash down applications.

• Features accuracies of 2%, 3% or 5%
• Offers 24 VDC or 24 VAC power (field-selectable)
• Includes optional temperature sensor

Product Highlights

This humidity transmitter is designed for outdoor use and offers field-selectable power and signal options.

Product Information

Standard Information

• Brand: BAPI
• Manufacturer Part Number: BA/10K2H310OBB

Technical Specifications

• Accuracy: 3%
• Housing Material: Poly
• Sensor Element: 10K Type 2 Thermistor
• Output: 0 - 10 VDC
• Power Requirements: 24 VAC,24 VDC
• Application: Outdoor Air Humidity,Economizer Control,Psychrometric Calculations,Enthalpy,Dew Point,Wash Down Applications
• Mount: OSA
• Supply Voltage: 15-28 VAC/VDC
• Signal Output: 4-20 mA @ 700 , 0-5/10 VDC @ 10k min
• Sensing Technology: Resistive with ceramic substrate
• Sensor Protection - Room: Room Gore-Tex
• Sensor Protection - Duct/OSA: 80 micron stainless steel sintered filter
• Operating Humidity: 0-100%, non-condensing
• Operating Temperature - Room: 32 to 122 F (0 to 50 C)
• Operating Temperature - Duct/OSA: -40 to 158 F (-40 to 70 C)
• Enclosure - Room: ABS Plastic, UL94V-0
• Enclosure - WP: Weather Proof, NEMA 3R, Cast aluminum
• Wiring Terminations: Four wire, 16 to 26 AWG terminals
• Weight - Room: 0.25 lb (0.11 Kg)
• Weight - Duct/OSA - BB/BB2: 1.0 lb (0.45 Kg)
• Weight - WP: 1.3 lb (0.55 Kg)
• Approvals: CE, RoHS
