Bapi BA/10K2H300OBB Humidity

Product Description

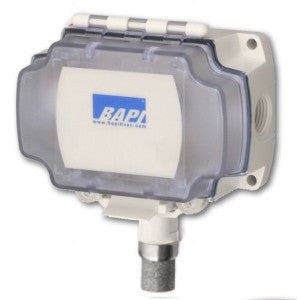

The BAPI BA/10K2H300OBB is a ±3% humidity transmitter with an interchangeable output of 0 to 5 V or 4 to 20 mA. It features a 10K-2 thermistor and is designed for outside air applications, housed in a BAPI box. Ideal for economizer control, psychrometric calculations, and wash-down applications.

• Features accuracies of 2%, 3% or 5%
• Offers 24 VDC or 24 VAC power (field-selectable)
• Provides 4-20 mA, 0-10V, or 0-5V signal (field-selectable)

Product Highlights

This humidity transmitter is field calibratable and includes an optional temperature sensor.

Product Information

Standard Information

• Brand: BAPI
• Manufacturer Part Number: BA/10K2H300OBB

Technical Specifications

• Accuracy: 3%
• Housing Material: Poly
• Sensor Element: 10K Type 2 Thermistor
• Output: 0 - 5 VDC
• Enclosure Rating: NEMA 4
• Power Requirements: 24 VAC,24 VDC
• Application: Outdoor Air Humidity,Economizer Control,Psychrometric Calculations,Enthalpy,Dew Point,Wash Down Applications
• Mount: OSA
