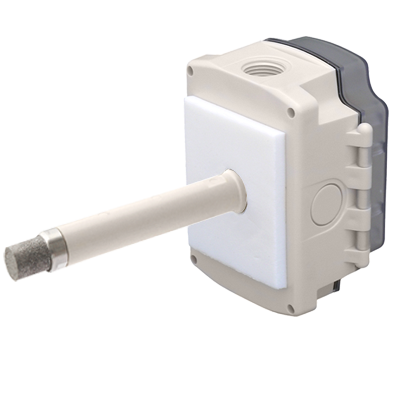

Bapi BA/10K-2-H200-D-BB Temp & Humidity Duct Sensor

Product Description

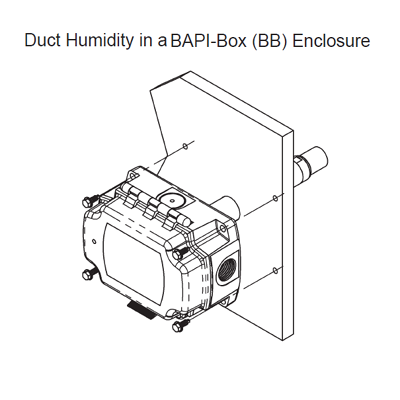

The BAPI BA/10K-2-H200-D-BB is a humidity sensor with a temperature transmitter. It utilizes a 10K-2 thermistor and features a humidity output of ±2% with an interchangeable output of 0 to 5 V or 4 to 20 mA. The unit is housed in a BAPI-Box enclosure made of UV-resistant polycarbonate.

• 2% Accuracy
• Duct and OSA NEMA 4 housing
• Field calibratable

Product Highlights

The BAPI BA/10K-2-H200-D-BB is ideal for humidification, dehumidification, supply, discharge, and return air applications.

Product Information

Standard Information

• Brand: BAPI
• Manufacturer Part Number: BA/10K-2-H200-D-BB

Technical Specifications

• Type: Duct
• Accuracy: 2%
• Temp Sensor Type: 10K Type II
• Housing Material: Poly
• Sensor Element: 10K Type 2 Thermistor
• Output: 0-5 VDC, 4-20 mA
• Enclosure Rating: IP66 NEMA 4X
• Power Requirements: 24 VAC,24 VDC
• Application: Humidification,Dehumidification,Supply,Discharge,Return Air,Economizers,Clean Rooms,Data Centers,Process Control,Schools,Hospitals,Office Buildings
• Mount: Duct
• Product Series: Duct Units
• Family Series: BAPI HVAC Sensors, Duct Units Series
• Description: Temp/Humidity Sensor, Duct, +/- 2pct., 0-5V or 4-20mA Out
• Input Voltage: 10-35 VDC
• Humidity Range: 0-100 % RH
• Display: None
• Override: No
• Set Point: No
• Operating Temperature: -40-158 °F
• Enclosure Material: UV-Resistant Polycarbonate UL94 V-0
• Environmental Operation Range (Temperature): -40F to 158F (-40C to 70C)
• Temperature Sensor: 10K-2 Thermistor
• Environmental Operation Range (Humidity): 0% to 100% RH
• Humidity Sensor: Capacitive +/- 2% (10 to 90% RH @ 23C)
• Power & Consumption: 10 to 35 VDC, 22 mA maximum
