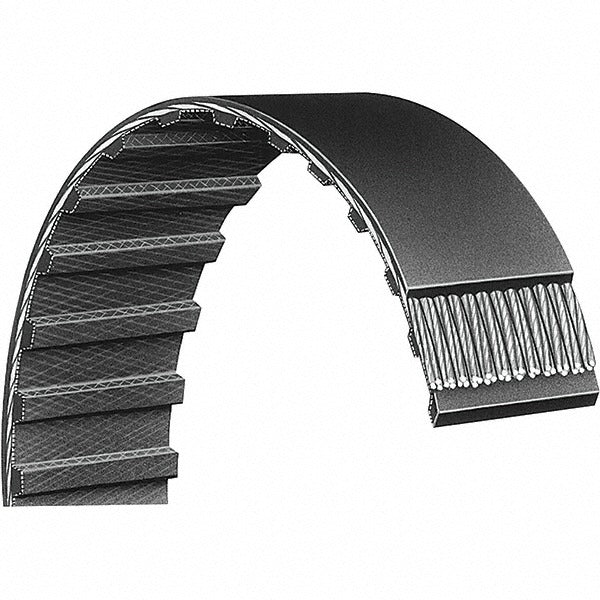

Bando 225L075G Timing Belt 60T 0.75in L Section Neoprene

Product Description

The BANDO 225L075G is an L-section synchronous timing belt designed for precision power transmission in mechanical drive systems. Built from neoprene with a fiberglass cord reinforcement, it delivers stable, low-stretch performance under cyclic loading. The belt runs 22.5 inches in pitch length, 0.75 inches wide, and carries 60 trapezoidal teeth on a 0.375-inch pitch. It operates across a temperature range of -22 degrees F to 194 degrees F, making it suitable for both indoor industrial environments and equipment exposed to thermal variation. Maintenance technicians and mechanical drive specialists install this belt on gear-reduced and timing-driven equipment where synchronization is critical.

The 225L075G fits drive systems calling for Series L belt geometry. Typical applications include light industrial machinery, HVAC blower drives, conveyor systems, and other equipment requiring a synchronous belt to maintain precise shaft-to-shaft timing. The trapezoidal tooth profile engages standard L-section timing pulleys cleanly, reducing slippage and maintaining consistent indexing under load. This belt is sold individually and is a direct replacement for belt number 225L075.

Key Features

• Neoprene construction with fiberglass cord for low stretch and long service life
• 60 trapezoidal teeth on 0.375-inch pitch for positive synchronous drive engagement
• 0.75-inch belt width suited to standard L-section pulley flanges
• 22.5-inch pitch length for direct dimensional replacement of 225L075 belts
• Operating range of -22 degrees F to 194 degrees F handles varied thermal environments
• Belt height of 0.138 inches matches standard L-section tooth depth requirements

Compatibility

Designed as a direct OEM-style replacement for Series L timing belt applications requiring belt number 225L075 with 0.75-inch width and 22.5-inch pitch length.

Installation Notes

Installation is performed by qualified mechanical or HVAC technicians. Always de-energize and lock out the equipment before removing the old belt or accessing the drive assembly. Do not pry the belt over pulley flanges with sharp tools, as this can damage the cord layer or tooth profile. Verify pulley alignment and center distance before tensioning to ensure even tooth engagement across the full belt width.
