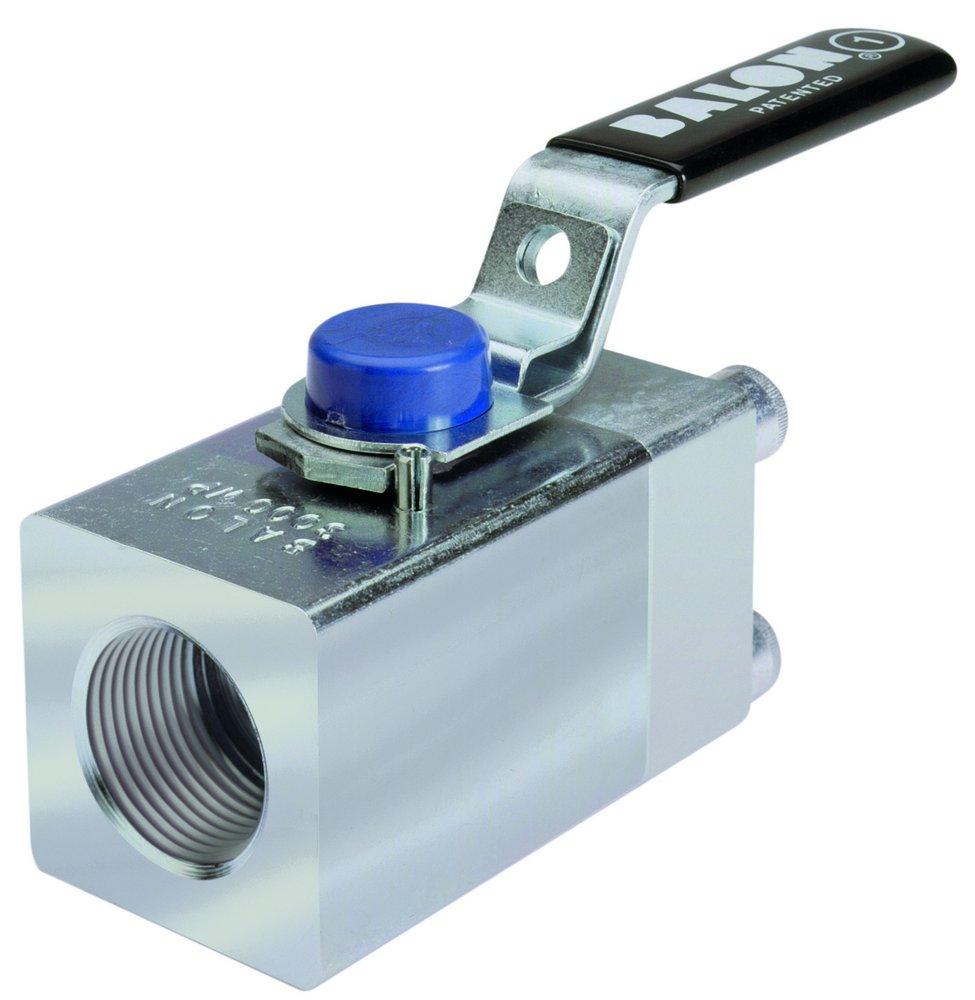

Balon lm05361 series lm carbon steel threaded end connection floating ball valve 1/2 in

Product Description

The BALON LM05361 is a Series LM ball valve with a carbon steel body and threaded end connection, featuring a floating ball design. It is 100% Made in USA and has a 316 stainless steel ball and stem. Designed for 3000 PSI WP, this valve features bolted body construction and a locking device.

• 100% Made in USA
• 3000 PSI WP
• Bolted Body Construction

Product Highlights

Carbon steel body ball valve with threaded end connection and floating ball design. 316 stainless steel ball and stem.

Product Information

Standard Information

• Brand: BALON
• Manufacturer Part Number: LM05361
• Country of Origin: USA

Technical Specifications

• End Connection: Threaded
• Body Material: Carbon Steel
• Valve Series: LM
• Pressure Rating: 3000 PSI WP
• Ball and Stem: 316 Stainless Steel
• Actuator Type: Lever Handle
• End Style: Female NPT x Female NPT
• Nominal Size: 1/2 in
• Temperature Rating: -20 to 212 deg F
• Trim Material: Carbon Steel
• Type: Floating
• Domestic/Import: Domestic
• ASTM: ASTM A-193 B7M
• Collection: Series LM
• End Connection 1: NPT
• End Connection 2: NPT
• End Connections: NPT
• FM Approved: No
• Handle Material: Carbon Steel
• IAPMO Listed: No
• MSS: MSS SP-25
• Material: Carbon Steel
• Material Type: A105
• NSF Certified: No
• Pressure - Maximum: 3000 psi
• Pressure Class: 3000#
• UL Listed: No
• Valve Body Style: Threaded
• Valve Bonnet Type: Bolted
• Valve Operator: Lever Handle
• Valve Port Opening: Standard Port
• Valve Seat Material: Nylon
• Valve Size: 1/2 in
• Valve Stem: Standard
• Valve Type: Ball Valve
