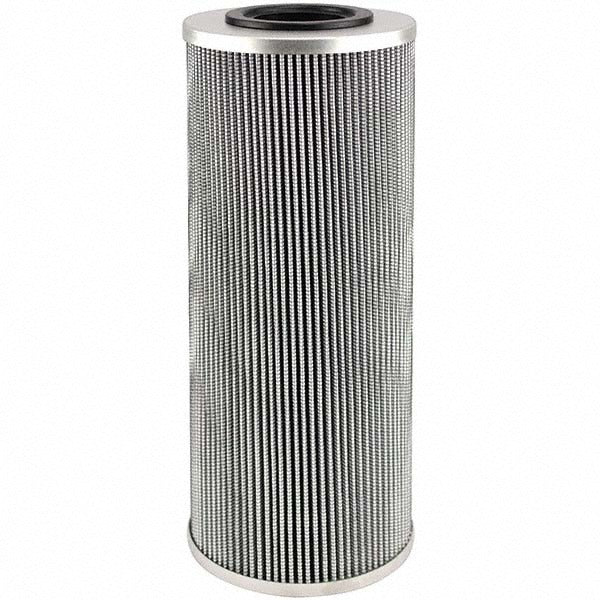

Baldwin Filters PT8363 Hydraulic Filter Element

Product Description

The BALDWIN FILTERS PT8363 is a hydraulic filter element designed for demanding fluid power systems. This element-only design filters hydraulic fluid to maintain system cleanliness, supporting cold start performance and overall fluid integrity. The PT8363 measures 3-15/16 inches in outside diameter and 9-5/32 inches in overall length, with an inside diameter of 1.563 inches. It ships with two grommets included. Licensed hydraulic technicians and heavy equipment mechanics are the primary installers of this component in mobile and industrial hydraulic circuits.

This filter element is suited for hydraulic systems found in heavy construction equipment and industrial machinery. Documented application data lists Caterpillar equipment, Grove Equipment, and Schroeder Hydraulic Systems as compatible platforms. It is installed in return-line or pressure-line filter housings that accept this element form factor. The element-only design means it is intended as a replacement insert for an existing housing rather than a complete spin-on assembly.

Key Features

• Element-only filter design for use in compatible hydraulic filter housings
• Outside diameter of 3-15/16 inches and overall length of 9-5/32 inches for precise housing fit
• Inside diameter of 1.563 inches for proper core seating
• Includes two grommets for sealing and mounting
• Engineered to improve system fluid cleanliness level and provide superior system protection
• Supports better cold start performance in hydraulic circuits

Compatibility

Verified application data lists Caterpillar equipment, Grove Equipment, and Schroeder Hydraulic Systems as compatible platforms for the PT8363 hydraulic filter element.

Installation Notes

Installation should be performed by a qualified hydraulic technician or heavy equipment mechanic. Before servicing the filter housing, depressurize the hydraulic system completely and allow fluid temperatures to drop to a safe handling level. Inspect the housing seal surfaces and replace any worn seals or grommets at each service interval. Dispose of used hydraulic fluid and filter media in accordance with local environmental regulations.
