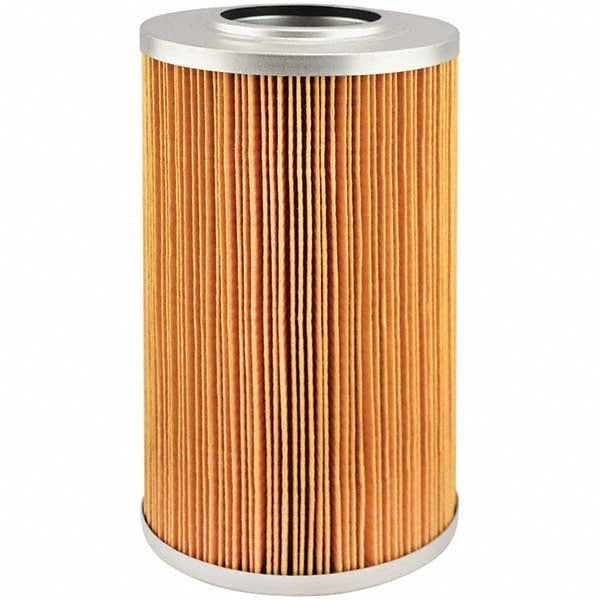

Baldwin Filters PT498-10 Hydraulic Filter Element

Product Description

The BALDWIN FILTERS PT498-10 is a hydraulic filter element designed for mobile and off-highway equipment hydraulic systems. At 4.5 inches outside diameter and 7.25 inches overall length, this element-only design replaces the internal filter media within an existing housing. It ships with two gaskets - G307 and G397 - providing the sealing components needed for a complete service. Rated for hydraulic fluid filtration, the PT498-10 improves system fluid cleanliness levels and delivers better cold-start performance by maintaining lower restriction in cold, viscous fluid conditions. Licensed HVAC and heavy-equipment service technicians will find the included gaskets eliminate the need to source seals separately.

The PT498-10 is used in hydraulic systems on agricultural, construction, and industrial equipment. Documented application coverage includes Allis Chalmers, Fiat-Allis, Ford, and Hough Equipment machines. This element-only filter is installed inside an existing canister-style hydraulic filter housing during routine hydraulic fluid service or when system contamination is detected. It is a common maintenance item on loader, dozer, and tractor hydraulic circuits in both residential farm and commercial job-site environments.

Key Features

• Element-only design fits into existing canister housings - no new housing required
• Includes I-gasket and O-gasket (G307 and G397) for a complete seal kit
• 4.5 inch outside diameter and 7.25 inch overall length for direct OEM-style fitment
• Improves hydraulic system fluid cleanliness level by removing particulate contamination
• Provides better cold-start performance by maintaining acceptable flow restriction in low-temperature conditions
• Superior protection for hydraulic pumps, valves, and actuators downstream

Compatibility

Designed for use on Allis Chalmers, Fiat-Allis, Ford, and Hough Equipment machines with canister-style hydraulic filter housings requiring an element-only replacement.

Installation Notes

Installation is performed by qualified equipment service technicians. Before servicing, relieve all hydraulic system pressure and drain the filter housing to prevent fluid spillage. Inspect the housing sealing surfaces before installing the new element and replace both included gaskets - do not reuse old gaskets. Follow the equipment manufacturer's service manual for housing torque and fluid refill procedures, and properly dispose of used hydraulic fluid and the spent filter element in accordance with local regulations.
