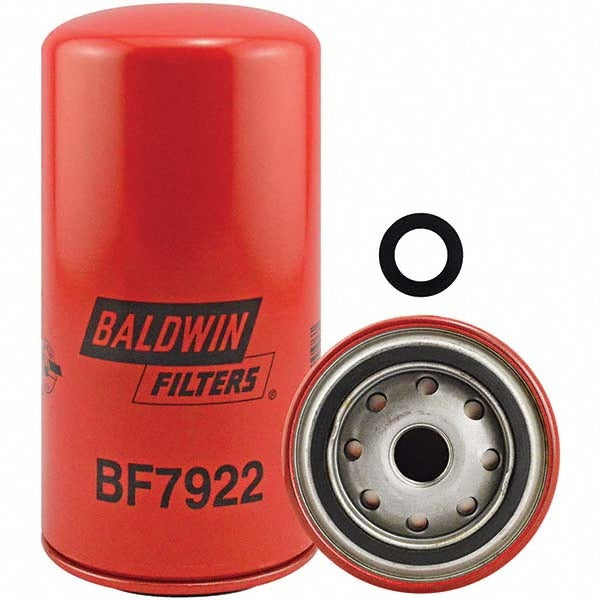

Baldwin Filters BF7922 Spin-on Fuel Filter 3.688in Od

Product Description

The BALDWIN FILTERS BF7922 is a spin-on fuel filter designed for heavy-duty automotive and diesel engine applications. It removes particulate contamination from fuel before it reaches injectors and fuel system components. With an outside diameter of 3.688 inches and an overall length of 7.219 inches, this filter fits into standard spin-on filter mounts using an M20 x 1.5 thread. Rated to withstand pressures up to 60,000 psi, it is built for demanding duty cycles where fuel system integrity is critical. Diesel technicians and fleet mechanics are the primary installers of this unit.

The BF7922 is suited for diesel-powered vehicles and equipment where spin-on fuel filtration is specified. It includes an F Gasket and a G401 A Gasket, supporting a leak-free seal at installation. Compatible cross-reference part numbers include Case 87803200, Cummins 4989106, Donaldson P559675, Fram P9454, Hastings FF1188, Purolator F75921, and Wix 533682, making it a direct service replacement across a wide range of equipment using those original filters.

Key Features

• Spin-on design for fast, tooled or hand-tight service replacement
• Outside diameter of 3.688 inches and overall length of 7.219 inches
• M20 x 1.5 thread size for secure filter mounting
• Rated to 60,000 psi maximum operating pressure
• Includes F Gasket and G401 A Gasket for complete, leak-free installation
• Particle reduction filtration to protect downstream fuel system components

Compatibility

Direct cross-reference replacement for Case 87803200, Cummins 4989106, Donaldson P559675, Fram P9454, Hastings FF1188, Purolator F75921, and Wix 533682.

Installation Notes

Installation is performed by diesel technicians or qualified fleet mechanics following engine manufacturer service procedures. Shut off the engine and relieve fuel system pressure before removing the old filter. Apply a light film of clean diesel fuel to the gasket before threading the new filter onto the mount, and follow the torque guidance on the filter housing or OEM service manual rather than hand-tight alone. Dispose of used filters in accordance with local hazardous-material regulations.
