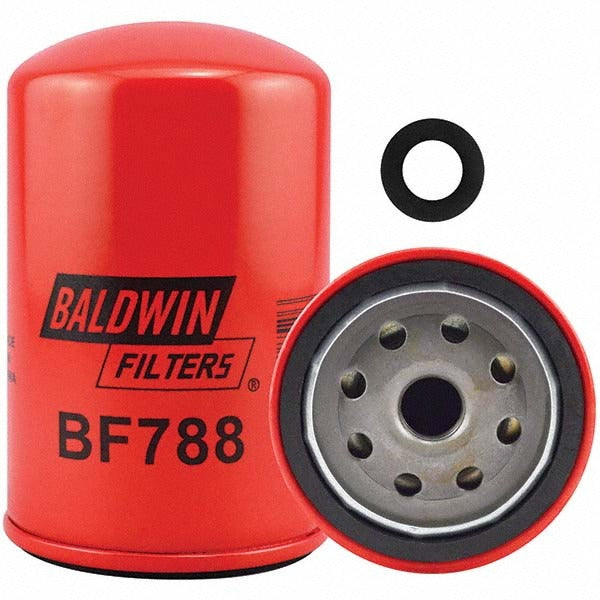

Baldwin Filters BF788 Spin-on Fuel Filter 3.031in Od

Product Description

The BALDWIN FILTERS BF788 is a spin-on fuel filter designed for heavy-duty automotive and equipment fuel systems. It filters out particulates from the fuel supply before they reach injectors or fuel system components. The BF788 measures 3.031 inches in outside diameter and 4.844 inches in overall length, with an M16x1.5 thread for secure mounting. Rated for operation up to 60,000 psi, this filter is built for demanding service conditions. It ships with a G449-B I gasket and O-ring included. Licensed HVAC and diesel equipment technicians, fleet mechanics, and equipment service professionals are the typical installers.

The BF788 is suited for use across a wide range of diesel and gasoline-powered vehicles and heavy equipment platforms where a spin-on fuel filter with M16x1.5 thread is specified. It serves as a direct replacement for filters from ACDelco, Case, Caterpillar, Cummins, Donaldson, Fram, GMC, Hastings, International, John Deere, Komatsu, Purolator, and Wix - see the compatibility section for specific part numbers. Typical applications include agricultural equipment, construction machinery, and commercial vehicles requiring high-pressure fuel filtration.

Key Features

• Spin-on design for fast, tool-assisted filter changes
• Rated to 60,000 psi maximum operating pressure
• M16x1.5 threaded mount for secure, leak-resistant installation
• Filters fuel-borne particles to protect downstream fuel system components
• Includes G449-B I gasket and O-ring - no separate seal purchase required
• Heavy-duty construction suitable for high-demand diesel and gasoline applications

Compatibility

Direct replacement for: ACDelco TP1067, Case J903640, Caterpillar 3I1179, Cummins 3903640, Donaldson P550440, Fram P4688, GMC 25012003, Hastings FF1008, International J931063, John Deere F433787, Komatsu CUFF5052, Purolator F54424, and Wix 533777.

Installation Notes

Installation is performed by a qualified mechanic or equipment service technician. Relieve fuel system pressure and disconnect the fuel supply before removing the old filter. Apply a light film of clean fuel or oil to the gasket and O-ring before threading the new filter on by hand until the gasket contacts the seating surface, then tighten per standard spin-on filter practice. After installation, cycle the ignition to prime the system and inspect for leaks before returning the equipment to service.
