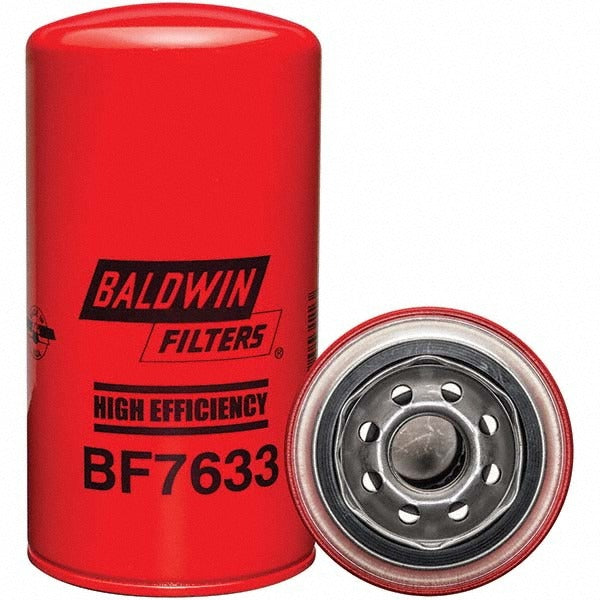

Baldwin Filters BF7633 Spin-on Fuel Filter 3.688in Od

Product Description

The BALDWIN FILTERS BF7633 is a spin-on fuel filter designed to remove particulate contamination from diesel and gasoline fuel systems in automotive and heavy-duty applications. With an outside diameter of 3.688 inches and an overall length of 7.125 inches, this filter installs using a standard spin-on procedure and is rated to a maximum operating pressure of 60,000 psi. The BF7633 is built for heavy-duty construction environments where fuel cleanliness is critical to injector and pump longevity. It ships as a single unit and includes a replacement gasket (I Gasket G381-A). Licensed technicians and fleet maintenance professionals are the primary installers.

The BF7633 is suited for automotive, fleet, and heavy-duty diesel applications where a spin-on fuel filter is required. It is a direct cross-reference replacement for multiple OEM and aftermarket filter part numbers, making it a practical stocking option for shops that service mixed fleets. The filter is engineered to handle higher operating pressures common in modern high-pressure fuel delivery systems, and its filtration technology targets particle reduction to protect downstream fuel system components.

Key Features

• Spin-on design for fast, tool-friendly installation and removal
• Rated to 60,000 psi maximum operating pressure
• Targets particle reduction to protect fuel injectors and pumps
• Heavy-duty construction suitable for demanding fleet and automotive applications
• Includes I Gasket G381-A for a complete, leak-free installation
• Crosses to multiple OEM and aftermarket filter numbers for broad fleet coverage

Compatibility

Direct cross-reference for Caterpillar 1R0750, Donaldson P551740, Fleetguard FF5320, Fram P8334, GMC 89002390, Hastings FF1079, Purolator F65213, and Wix WF10403.

Installation Notes

Installation should be performed by a qualified automotive or diesel technician. Depressurize the fuel system and disconnect the fuel supply before removing the old filter. Apply a light film of clean fuel to the gasket seating surface before threading on the new filter. Do not over-tighten; follow the spin-on filter manufacturer hand-tighten-plus-turn procedure appropriate for the filter housing.
