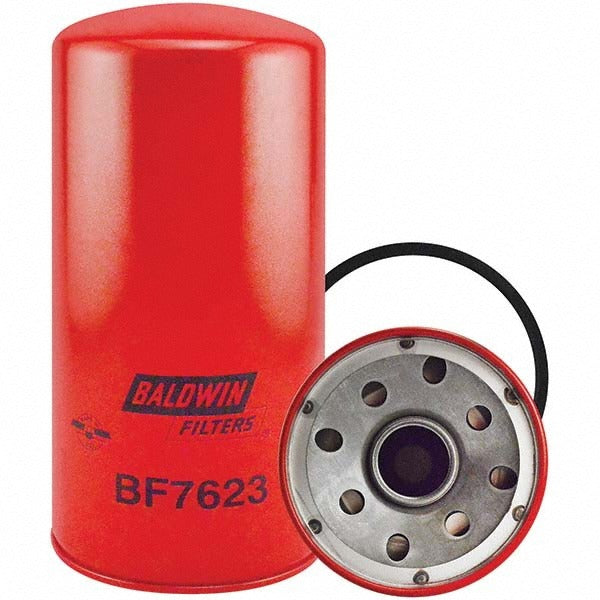

Baldwin Filters BF7623 Spin-on Fuel Filter 5.063in Od

Product Description

The BALDWIN FILTERS BF7623 is a spin-on automotive fuel filter designed to remove particulate contamination from diesel and gasoline fuel systems. With an outside diameter of 5.063 inches and an overall length of 10.75 inches, this is a full-size filter suited to heavy-duty and commercial vehicle applications. It uses water-absorbent media to capture both particulates and free water before they reach injectors or fuel system components. The filter ships with a G369-B F gasket, a G369-V O-ring gasket, and G704 and G710 gaskets, providing the sealing hardware needed for a complete service. Licensed technicians and fleet maintenance crews handling routine fuel system service will find all required gaskets included in the box.

This filter is intended for spin-on fuel filter applications in automotive and commercial fleet environments where particulate control and water absorption are required. The 1-1/2 inch thread size is common across a range of diesel engine platforms. It is well-suited to preventive maintenance intervals on vehicles where fuel quality or water intrusion is a known concern. The included multi-gasket kit reduces the need for separate seal sourcing at the time of service.

Key Features

• Spin-on design for fast, tool-assisted replacement during scheduled service
• Water-absorbent media removes free water as well as particulate contamination
• Filtration technology helps prevent premature wear on downstream fuel system components
• 1-1/2 inch thread size compatible with common heavy-duty and commercial fuel filter mounts
• Includes G369-B F gasket and O-ring gaskets G369-V, G704, and G710 - no separate seal kit required

Compatibility

Cross-references to Hastings BF7623 and Wix 24050. Designed as an OEM-style spin-on replacement for heavy-duty automotive and commercial vehicle fuel filter applications requiring a 5.063 inch OD, 10.75 inch overall length filter with a 1-1/2 inch thread.

Installation Notes

Installation should be performed by a qualified technician following the vehicle or engine manufacturer's service procedure. Relieve fuel system pressure and depressurize the fuel circuit before removal of the old filter. Thread the new filter onto the mount by hand until the gasket contacts the seating surface, then tighten according to the filter housing manufacturer's specification - do not over-tighten. Inspect all included gaskets for correct seating and check for leaks after restoring fuel system pressure.
