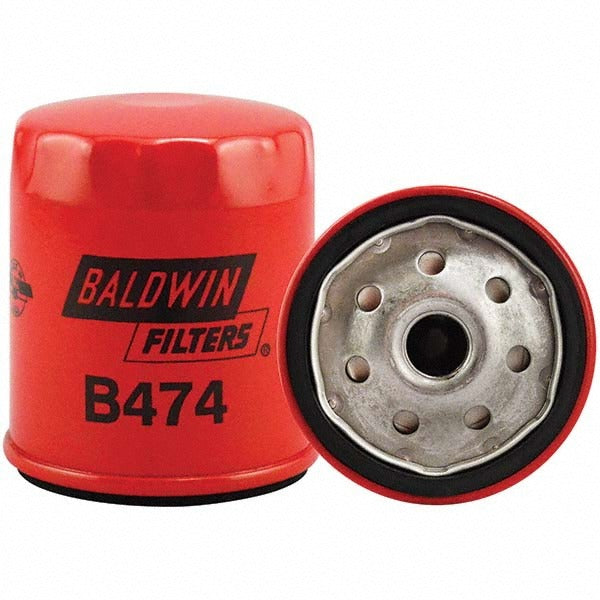

Baldwin Filters B474 Spin-on Oil Filter 3in Od

Product Description

The BALDWIN FILTERS B474 is a spin-on oil filter designed for automotive and light-duty engine applications. It removes contaminants and wear particles from engine oil, protecting internal engine components during normal operation. The B474 measures 3 inches in outside diameter and 3.531 inches in overall length, with an M16x1.5 thread for secure installation. It ships with a G449-B I gasket included. Licensed technicians and experienced DIYers performing routine oil service install this filter as part of scheduled engine maintenance.

The B474 is suited for automotive engines requiring a compact spin-on oil filter with M16x1.5 thread engagement. It fits applications where Donaldson P502568, Fleetguard LF3964, Fram PH7202, Hastings LF350, or Wix 51032 filters are specified, making it a direct cross-reference replacement for those part numbers. It is appropriate for residential and light commercial vehicle maintenance across a range of engine types that share this thread and dimensional profile.

Key Features

• Spin-on design for fast, tool-assisted removal and installation
• High-capacity filtration media targets wear particles and contaminants
• M16x1.5 thread for secure, leak-resistant seating
• G449-B I gasket included - no separate gasket purchase required
• Crosses directly to Donaldson P502568, Fleetguard LF3964, Fram PH7202, Hastings LF350, and Wix 51032

Compatibility

Confirmed cross-reference replacements include Donaldson P502568, Fleetguard LF3964, Fram PH7202, Hastings LF350, and Wix 51032. Verify thread size and overall length against the application before installation.

Installation Notes

Oil filter replacement is performed by automotive technicians or qualified DIYers during scheduled oil service intervals. Drain and depressurize the engine oil system completely before removing the old filter. Hand-tighten the B474 until the gasket contacts the seating surface, then snug per the engine manufacturer torque guidance - do not over-tighten. Confirm no oil leaks are present after refilling and running the engine to operating temperature.
