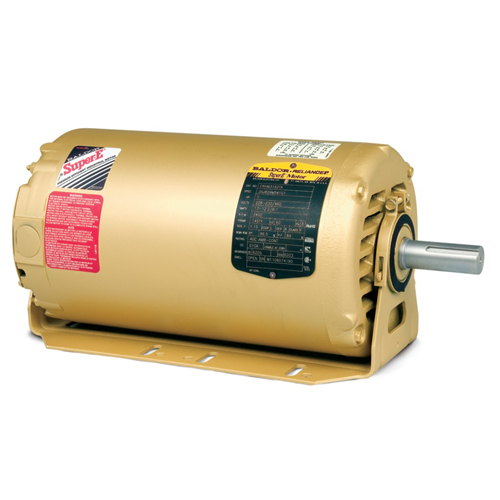

Baldor Motor ERM3116 Electric Motor 1 HP

Product Description

The Baldor Motor ERM3116 is a three-phase electric motor suitable for general purpose and HVAC applications. This model operates at sixty hertz and is ideal for direct on line starting. It features an open enclosure and a resilient base that helps to minimize noise and vibration. The robust steel frame enhances durability. This motor supports F1 mounting and allows for reversible rotation. It is engineered for continuous duty and is equipped with ball bearings.

• Three-phase operation
• Open enclosure design
• F1 mounting capability

Product Highlights

The Baldor Motor ERM3116 is built for reliability and efficiency in various settings, including industrial and commercial environments.

Product Information

Standard Information

• Brand: Baldor Motor
• Manufacturer Part Number: ERM3116

Technical Specifications

• Horsepower: 1 HP
• Input Voltage: 200-240 VAC/400-480 VAC
• Frequency: 60 Hz
• Phase: 3
• RPM: 1700-1800
• Frame: 56H
• Enclosure: Open
• Mounting Arrangement: F1
• Ambient Temperature: 40 °C
• Base Indicator: Resilient
• Frame Material: Steel
• Insulation Class: F
• Service Factor: 1.15
• Shaft Rotation: Reversible
• Number of Poles: 4
• Overall Length: 11.42 inches
• Shaft Diameter: 0.625 inches
• Duty Rating: Continuous
• Starting Current: 12.5 Amps
• Full Load Torque: 3 LB-FT
• Voltage Rating: 230/460 VAC
• Amperage Rating: 3/2.9/1.5 A
• Speed: 1750 rpm
• Bearing Type: Ball
• Dimensions: 11.42 inches L
