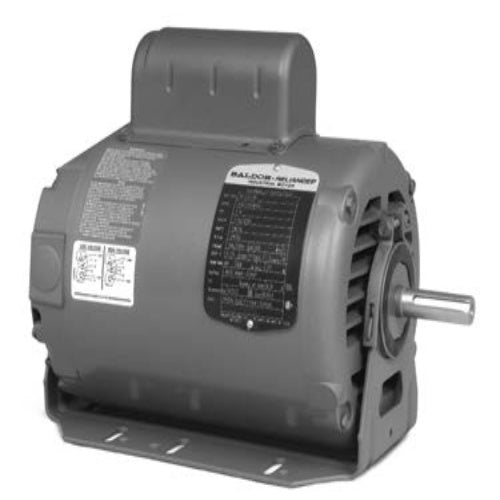

Baldor Motor ERM3108 General Purpose Motor 0.5 HP

Product Description

The Baldor Motor ERM3108 is a three-phase general-purpose motor. It operates on a voltage of 230/460V at a frequency of sixty Hertz. This motor offers a power output of 0.5 horsepower and achieves a speed of 1725 RPM. Its construction includes an open drip proof enclosure and a resilient base, ensuring durability in operation.

• Three-phase operation
• NEMA compliant
• Designed for continuous duty

Product Highlights

This motor is suitable for various applications, including pumps and compressors. It features flying leads for easy electric termination.

Product Information

Standard Information

• Brand: Baldor Motor
• MPN: ERM3108

Technical Specifications

• Motor Type: 3424M
• Phase: 3
• Frequency: 60 Hz
• Output Power: 0.5 HP
• Speed: 1725 RPM
• Synchronous Speed: 1800 RPM
• Voltage: 230/460 V
• Current @ 208V: 2.100 A
• Current @ 230V: 1.600 A
• Current @ 460V: 0.800 A
• Enclosure: ODP
• Frame Size: 56
• Frame Material: Steel
• Mounting Arrangement: F1
• Duty Rating: CONT
• Insulation Class: B
• Service Factor: 1.25
• Ambient Temperature: 40 °C
• Shaft Diameter: 0.625 inches
• Shaft Rotation: Reversible
• Motor Standards: NEMA
• Design Code: B
• Power Factor: 78
• Efficiency @ 100% Load: 78.2%
• Starting Method: Direct on line
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 18 AWG
• Base Indicator: Resilient
• Pulley End Bearing Type: Ball
• Shaft Extension Location: Pulley End
• Overall Length: 11.97 inches
• Agency Approvals: CURUSEEV
• Motor Construction: Steel
