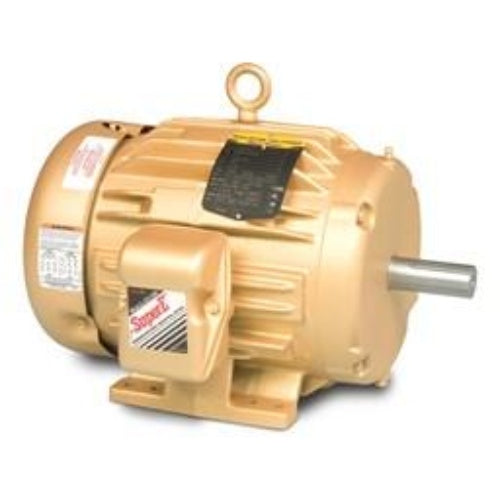

Baldor Motor EM3661T-G General Purpose Motor 3 HP

Product Description

The Baldor Motor EM3661T-G is a three-phase AC general-purpose motor designed for various applications. It operates at dual voltages of 230/460V at 60 Hz. This motor features a totally enclosed fan cooled (TEFC) design that enhances durability and efficiency. It has a rigid base and standard lifting lugs for easy installation. Suitable for inverter use, this motor can operate in both clockwise and counterclockwise rotation.

• 3 HP output and NEMA rated.
• TEFC enclosure protects internal components.
• Speed of 1755 RPM for consistent performance.

Product Highlights

The Baldor Motor EM3661T-G provides reliable operation in industrial settings. Its robust construction and specialized features make it ideal for demanding applications.

Product Information

Standard Information

• MPN: EM3661T-G
• Brand: Baldor Motor

Technical Specifications

• Motor Type: 0632M
• Output Power: 3 HP
• Speed: 1755 RPM
• Input Voltage: 230 V @ 60 Hz / 460 V @ 60 Hz
• Input Current: 8.600 A @ 208.0 V / 8.200 A @ 230.0 V / 4.100 A @ 460.0 V
• Frequency: 60 Hz
• Phase: 3
• Frame Size: 182T
• Enclosure: TEFC
• Mounting Arrangement: F1
• Duty Rating: CONT
• Service Factor: 1.15
• Insulation Class: H
• Temperature: 40 °C
• Motor Standards: NEMA
• Design Code: B
• Shaft Diameter: 1.125 IN
• Shaft Rotation: Reversible
• Frame Material: Iron
• Efficiency: 89.5 %
• Power Factor: 77
• Lifting Lugs: Standard
• Number of Poles: 4
• Overall Length: 15.23 IN
• Motor Construction: Iron
• Starting Method: Direct on line
• Agency Approvals: CURUSEEV / NEMA PREMIUM / CSA
