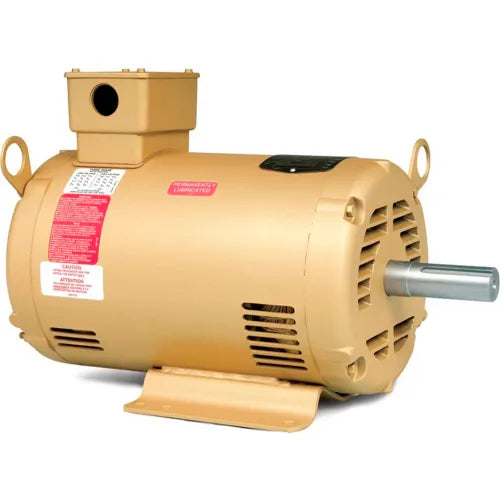

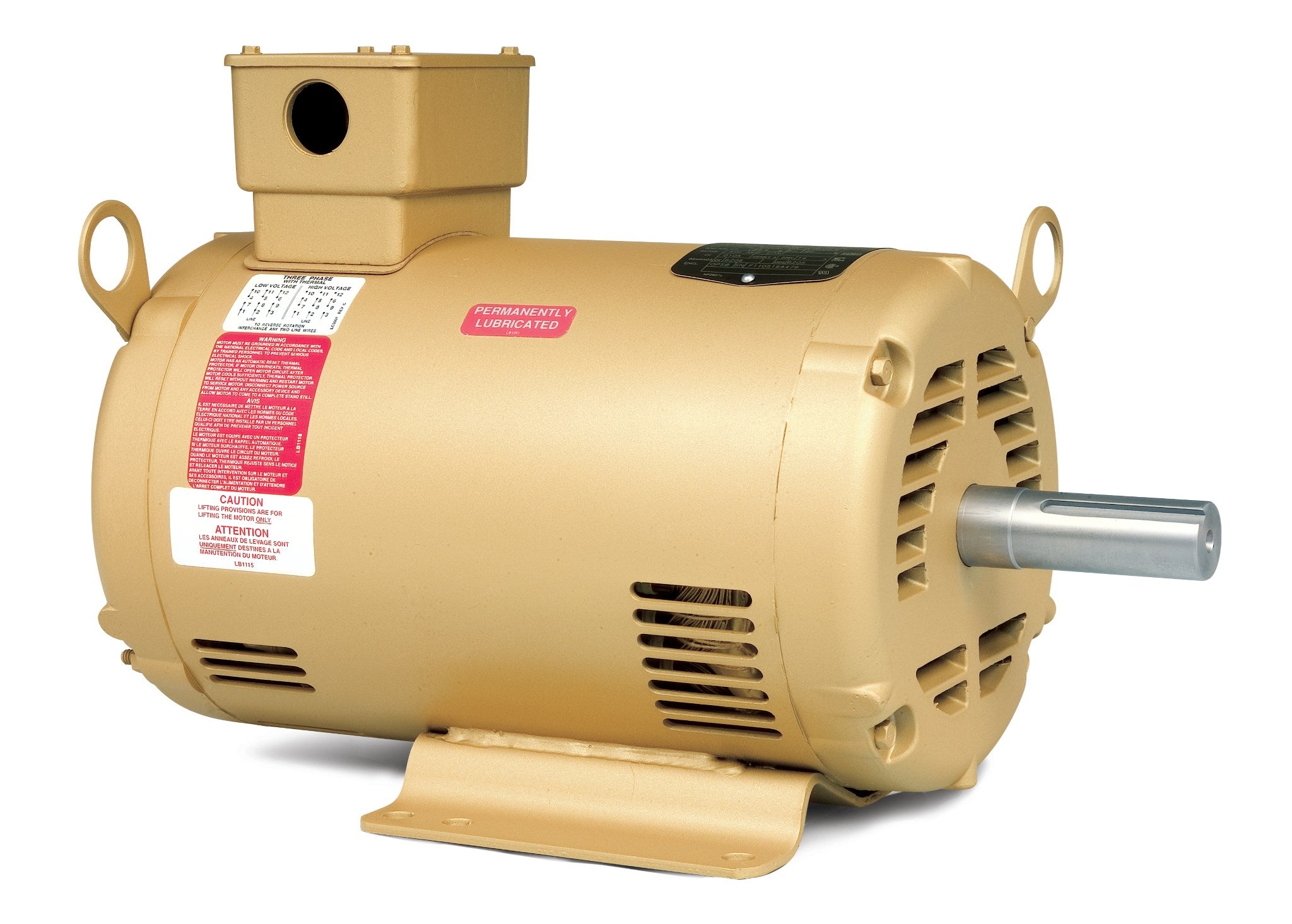

Baldor EHM3218TA Motor 5 HP 184T Open

Product Description

The Baldor Motor EHM3218TA is a 5 HP electric motor designed for effective performance in various applications. This motor features a heavy-gauge steel base for durability and ball bearings that reduce friction. The dynamically balanced rotors ensure quiet operation while minimizing vibration. It operates efficiently at 230/460 volts and 60 Hz with an open enclosure, suitable for ventilation, cooling fans, band saws, and agricultural machines.

• Heavy-gauge steel base
• Ball bearings for smooth operation
• Dynamically balanced rotors for reduced vibration

Product Highlights

This Baldor motor is ideal for HVAC applications, ensuring reliable and efficient performance in industrial and commercial environments.

Product Information

Standard Information

• Motor Category: Blower/Fan Motor
• Manufacturer: Baldor-ABB Motors

Technical Specifications

• Motor Phase: 3 ph
• Motor Horsepower: 5 hp
• Synchronous RPM: 1800 rpm
• Motor Supply Voltage: 230/460 V
• Frame Size: 184T
• Enclosure Type: Open/Drip Proof
• Frequency Rating: 60 Hz
• Duty Condition Type: Continuous Duty
• Base RPM: 1750 rpm
• Full Load Current: 14.00 / 6.60 A
• Full Load Efficiency: 89.50 %
• Shaft Diameter: 1.1250 in
• Overall Length C Dimension: 16.50 in
• Frame Material: Steel
• Insulation Class: F
• Service Factor: 1.15
• Standards Met: CSA EEV, UR, CSA
• Mounting Type: Foot
• Product Type: Air Handling (HVAC) Motors
• Type: General Purpose
• Speed: 1,750 RPM
• Mounting Location: Rigid
• Rotation: CCW/CW
• Thermal Protection: Automatic
• Rated RPM: 1750
• Certifications: CSA; CSA EEV; UR
