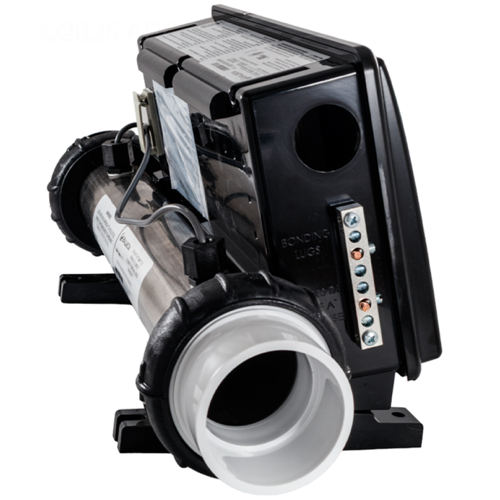

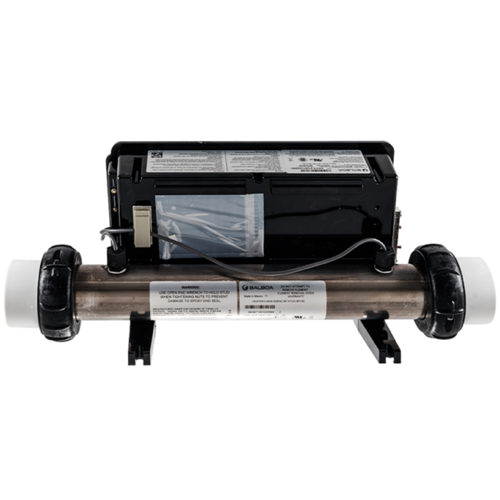

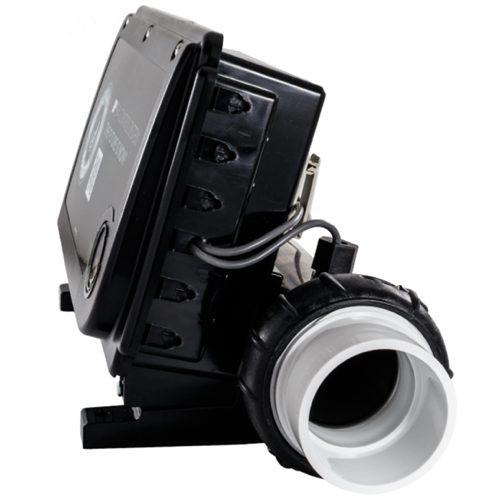

Balboa Water Group G6502 Control, BP100G2 with 5.5kW Heater, TP200T Replacement

Product Description

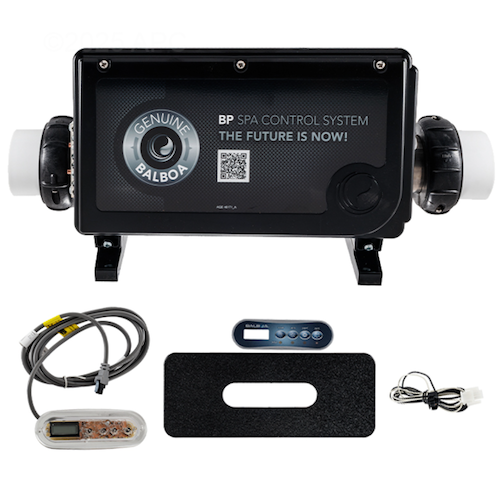

The Balboa Water Group G6502 is a control system designed for spa applications, featuring the BP100G2 model along with a 5.5kW heater and TP200T panel. This system is suitable for various setups, offering ease of use and installation. It is compatible with all of Balboa's TP and SpaTouch panels, ensuring flexibility for different spa configurations.

• Entry-level BP system suitable for many spa setups
• Includes TP200T panel and a 5.5kW heater
• Compact design with removable feet for versatile mounting options

Product Highlights

This system supports both 50Hz and 60Hz frequencies and features Wi-Fi compatibility for remote access and control. The integrated spa heater is engineered for straightforward installation and reliable performance.

Product Information

Standard Information

• Brand: Balboa Water Group
• Model: BP100G2

Technical Specifications

• Supply Voltage: 115v, 230v
• Heater Type: Fixed - Bottom
• Heater Wattage: 5.5kW
• Topside Included: TP200T
• Circ Pump Ready: Optional 115v, Optional 230v
• Accessory Ready: Yes
• Wi-Fi Compatible: Yes
• Number of Appliances: 2
• System Outputs: 120/240 VAC Pump #1, 5.5 kW Heater, 120 VAC Ozone, 12 VAC Spa Light
