Balboa Water Group 30409 Pressure Switch - 1.0 PSI, 3A, 1/8 NPT

Product Description

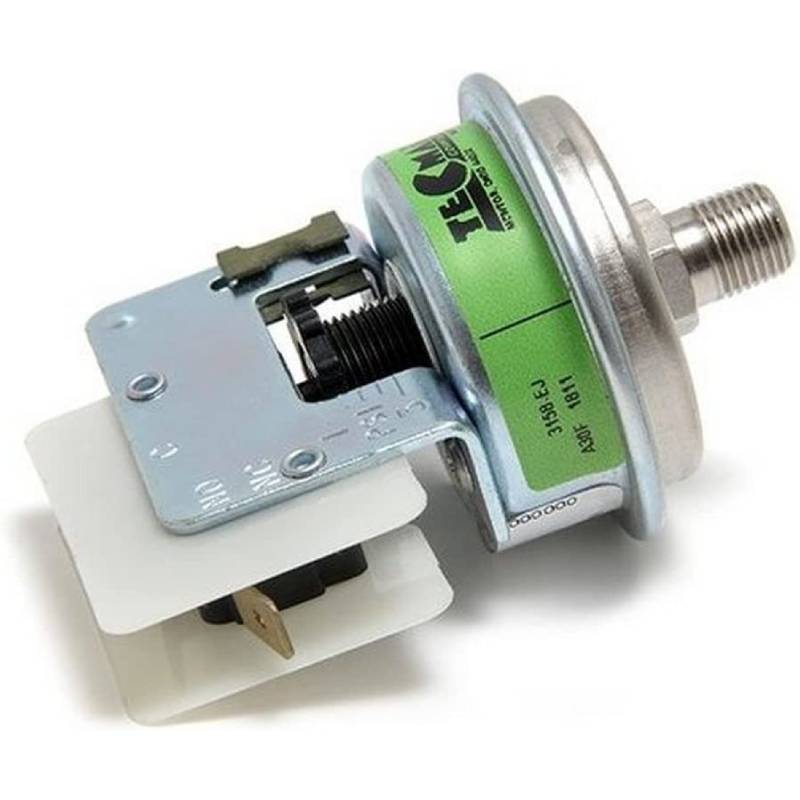

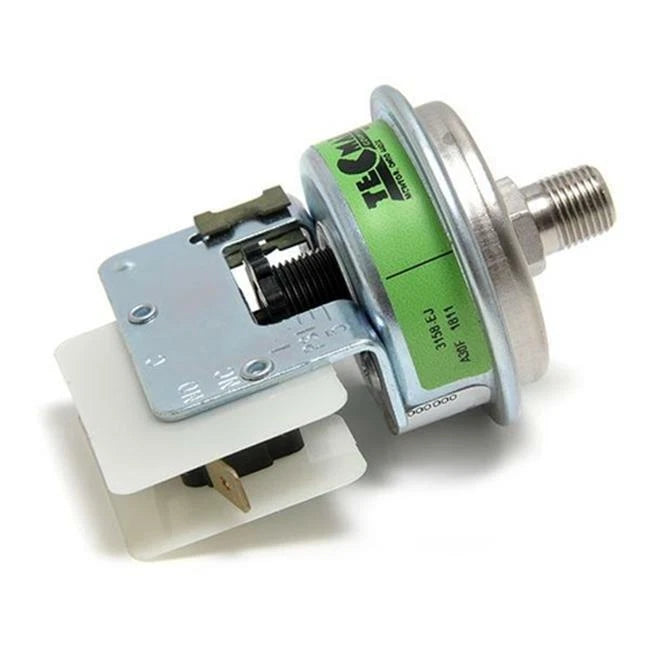

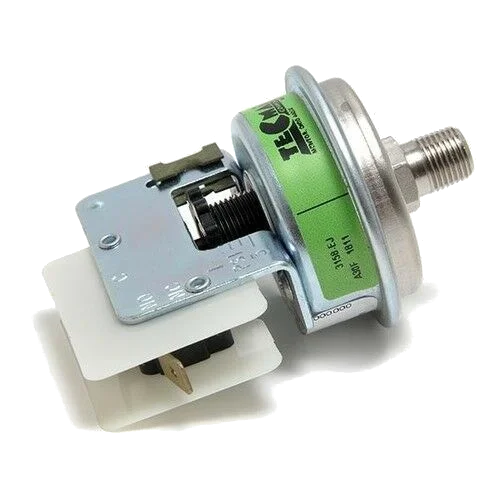

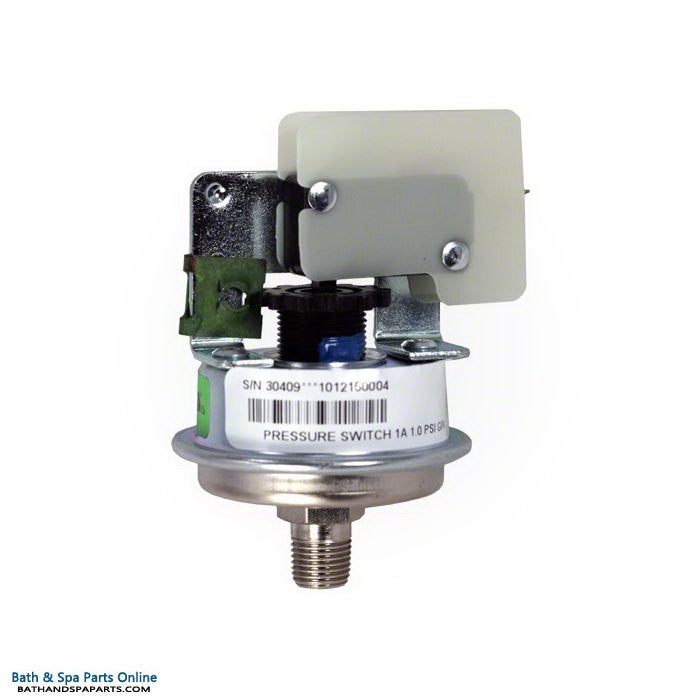

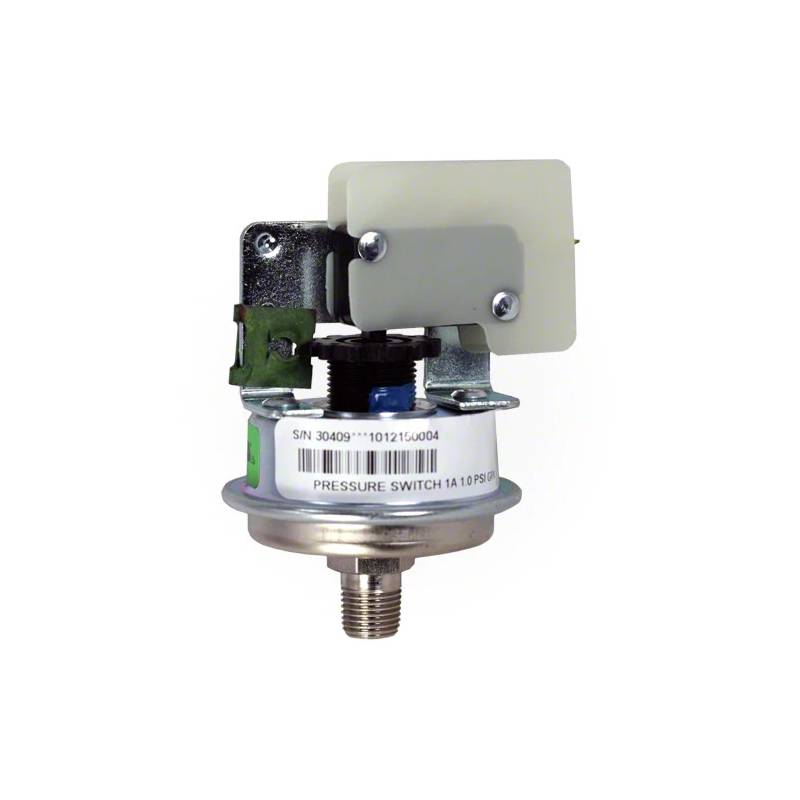

The Balboa Water Group 30409 is a pressure switch made for hot tubs and spas. This unit works to detect pressure changes within the heating system. It has a pressure rating of 1.0 PSI, suitable for effective monitoring. The switch is of the Single Pole Single Throw (SPST) type, rated for 3 Amps at 2 PSI. With metal threads of 1/8 NPT, it easily installs in relevant applications. The 30409 can replace existing switches in compatible hot tub and spa models. It serves as an alternative to the Barksdale MSPS-EE05-Q52.

• Designed for hot tubs and spas to monitor pressure.
• Features a 1.0 PSI pressure rating for pressure detection.
• Includes 1/8 NPT metal threads for easy installation.

Product Highlights

This switch enhances the safety and performance of your hot tub by constantly monitoring pressure levels.

Product Information

Standard Information

• Brand: Balboa
• Type: Pressure Switch

Technical Specifications

• Hot Tub & Spa Parts: Switches
• SPST: Single Pole Single Throw
• Threads: 1/8 inches NPT (Metal)
• Amps: 3 Amp - 2 PSI
• Alternate: MSPS-EE05-Q52 (Barksdale)
