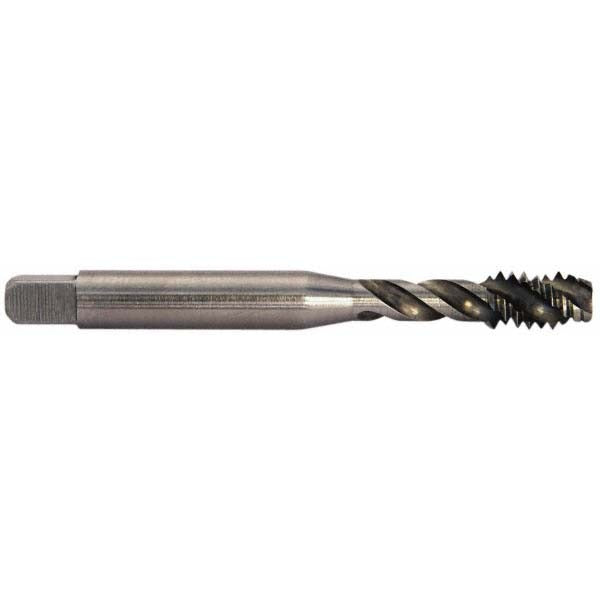

Balax 40065-010 Spiral Flute Tap 10-24 Unc 3 Flute

Product Description

The BALAX 40065-010 is a spiral flute tap designed for blind hole threading in a wide range of materials. Built from M42 powdered metal with a bright, uncoated finish, it features a 45-degree helix angle and a fast flute style that efficiently evacuates chips up and out of the hole during cutting. The modified bottoming chamfer allows threading close to the bottom of a blind hole. With an H5 thread limit and right-hand flute direction, this tap produces accurate 10-24 UNC threads in production and maintenance environments. It is installed by machinists, tool and die makers, and skilled tradespersons working with tapping equipment or hand tools.

This tap is suited for blind hole threading applications across a broad range of materials including aluminum, brass, bronze, carbon steel, copper, magnesium, stainless steel, wrought aluminum alloy, and zinc. The BX200 series is built for demanding production runs where chip control and thread accuracy are critical. The modified bottoming chamfer makes it a practical choice when thread depth within tight blind holes is required, and the 45-degree spiral flute promotes smooth chip flow even in gummy or stringy materials.

Key Features

• 45-degree helix angle with fast flute style for efficient chip evacuation in blind holes
• Modified bottoming chamfer for threading near the bottom of a blind hole
• M42 powdered metal construction for extended tool life across a wide material range
• H5 thread limit for controlled oversize tolerance, supporting consistent thread fit
• Right-hand thread and right-hand flute direction for standard tapping operations
• Compatible with a broad range of workpiece materials including stainless steel, carbon steel, and non-ferrous alloys

Compatibility

Designed for blind hole threading of 10-24 UNC threads in aluminum, brass, bronze, carbon steel, copper, magnesium, stainless steel, wrought aluminum alloy, and zinc workpieces. Part of the BALAX BX200 series.

Installation Notes

This tap is installed by machinists or skilled tradespeople using a tapping machine, drill press, or appropriate hand tapping tool. Always ensure the workpiece is securely fixtured and the tap is properly aligned to the drilled hole before engagement. Use a cutting fluid or tapping lubricant appropriate for the workpiece material, particularly when threading stainless steel or copper-based alloys. Do not force a worn or damaged tap, as breakage in a blind hole is difficult to remedy.
