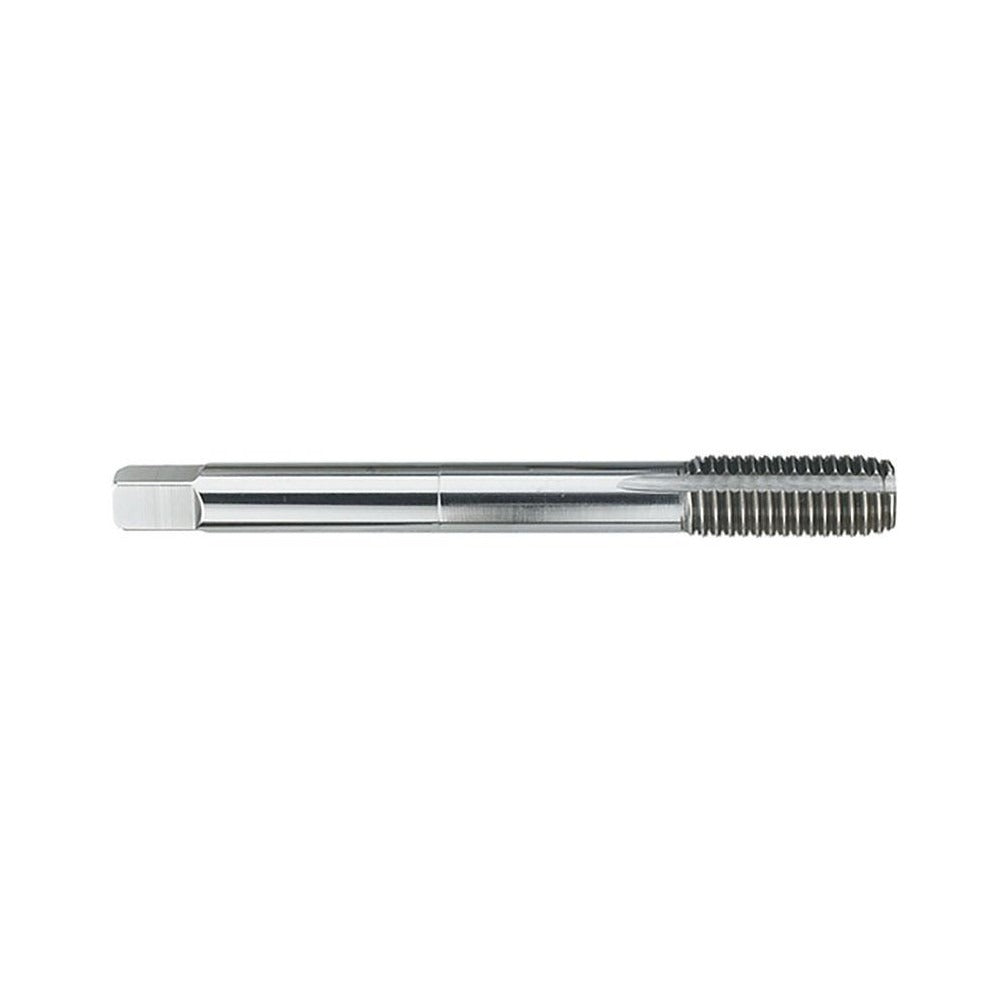

Balax 19002-000 Thread Forming Tap M12 X 1.75 Hss

Product Description

The BALAX 19002-000 is a thread forming extension tap designed for cutting M12 x 1.75 metric coarse internal threads in ductile materials. Unlike cutting taps, this thread forming tap cold-forms threads by displacing material rather than removing chips, producing stronger threads with a superior surface finish. Built from high-speed steel with a bright uncoated finish, it carries a D12 thread limit and a 6H class of fit. The 4-inch overall length makes it suitable for reaching threads in deeper or recessed bores where standard-length taps fall short. Machinists and tool-and-die professionals are the primary installers of this tool.

This extension tap is suited for production and maintenance machining operations where M12 x 1.75 metric coarse threads are required in blind or through holes in aluminum, brass, copper, mild steel, and other materials that respond well to cold-forming. The bottoming chamfer allows threading close to the bottom of a blind hole. The BXEXT series design accommodates setups where additional reach is necessary, making it useful in jig boring, CNC machining, and manual tapping applications on deep-set workpieces.

Key Features

• Thread forming design cold-forms threads for improved thread strength and no chip generation
• Bottoming chamfer enables threading to near the bottom of blind holes
• 4-inch overall length provides extended reach for recessed or deep-bore applications
• M12 x 1.75 metric coarse thread size with 6H class of fit for standard metric tolerance requirements
• High-speed steel construction offers good wear resistance across a range of workpiece materials
• Right-hand thread direction and right-hand flute direction for conventional tapping operations

Compatibility

Designed as an OEM-style replacement or direct-use thread forming tap for M12 x 1.75 metric coarse applications requiring a D12 thread limit and 6H class of fit in standard tap holders and extension setups.

Installation Notes

Thread forming taps require the correct drill size for the material being tapped, as the pilot hole diameter is larger than that used for cutting taps. Always apply appropriate tapping fluid or cutting oil for the workpiece material before tapping. Secure the workpiece fully and ensure the tap is aligned perpendicular to the work surface to avoid tap breakage. This tool should be installed and operated by qualified machinists or maintenance professionals familiar with tapping procedures and tooling specifications.
