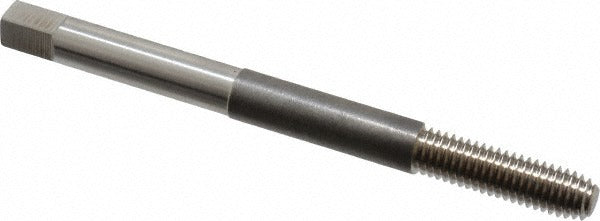

Balax 18595-010 Thread Forming Extension Tap M8 X 1.25

Product Description

The BALAX 18595-010 is a thread forming extension tap designed for cutting metric coarse internal threads in materials where cold-forming is preferred over chip-cutting. It produces M8 x 1.25 threads to a 4H class of fit, with a bottoming chamfer that allows threading close to the bottom of a blind hole. Built from high-speed steel with a bright, uncoated finish, this tap measures 4 inches overall length and carries a 1.125-inch thread length, making it well-suited for reaching into recessed or deep-pocket work that standard-length taps cannot access.

This extension tap is used in metalworking applications where reach is a constraint, such as machining fixtures, assemblies with deep bosses, or components requiring threads near a hole bottom. The bottoming chamfer makes it appropriate for blind-hole work in production and job-shop environments. It is installed by machinists and tool-and-die trades working with M8 x 1.25 metric coarse thread specifications. Right-hand thread direction and right-hand flute direction are standard for conventional tap wrench or machine tapping operations.

Key Features

• Thread forming design produces threads without chips, reducing the risk of chip contamination in blind holes
• Bottoming chamfer allows threading to within a minimal distance of the hole bottom
• Extended 4-inch overall length provides reach into deep pockets and recessed features
• High-speed steel construction offers durability across a range of workpiece materials
• 4H class of fit meets standard metric tolerance requirements for M8 x 1.25 threads
• Bright, uncoated finish with 0.318-inch shank diameter and 0.238-inch square size for standard tap holder compatibility

Compatibility

Designed as an OEM-style replacement or direct application tap for M8 x 1.25 metric coarse thread forming operations; fits tap holders and extension tap wrenches accepting a 0.318-inch shank diameter with a 0.238-inch square drive. Part of the BALAX BXEXT series.

Installation Notes

Thread forming taps require proper cutting fluid or tapping compound appropriate for the workpiece material to reduce heat and extend tool life. Ensure the tapping machine or tap wrench is properly aligned to the hole axis before applying feed pressure. Power down and secure the workpiece in the machine before tool changes. Follow applicable shop safety practices and manufacturer recommendations for spindle speed when using in machine tapping applications.
