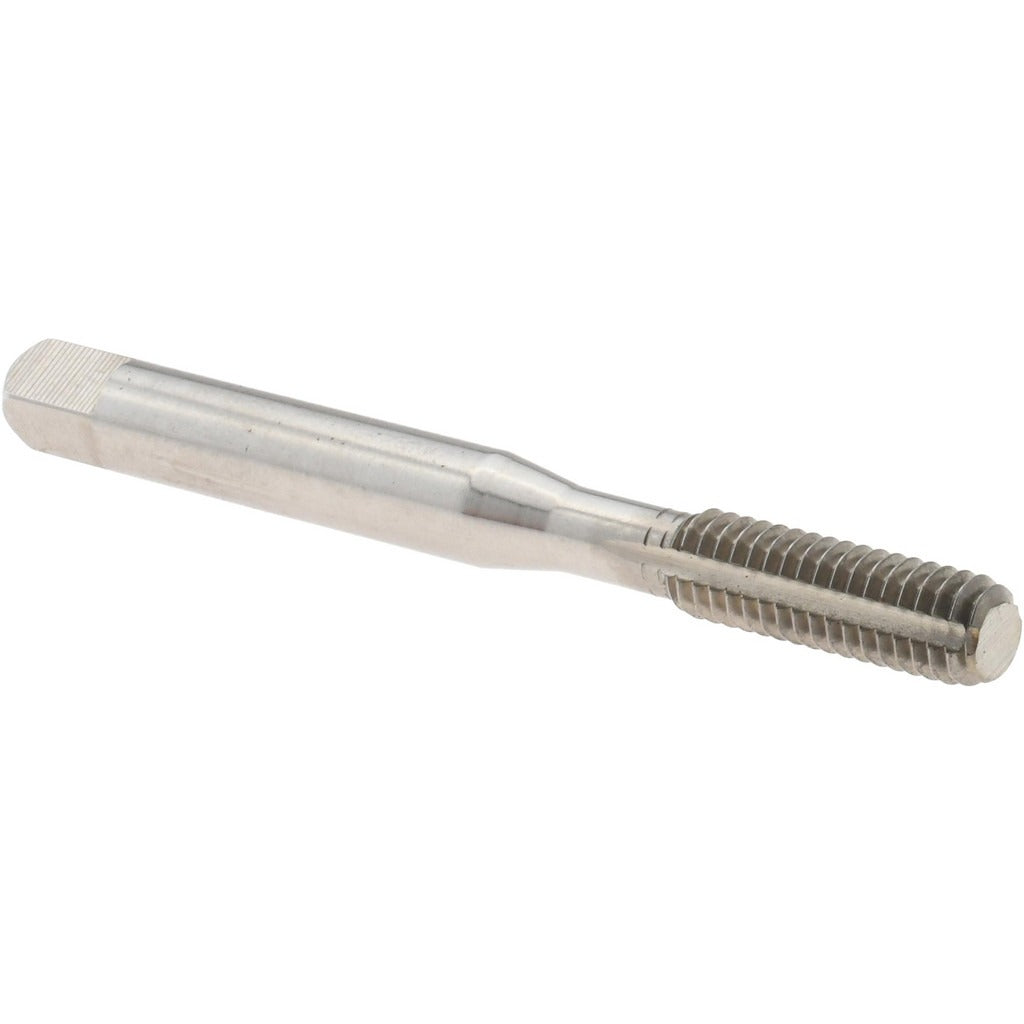

Balax 18389-010 M6x1.00 Thread Forming Tap Bottoming

Product Description

The BALAX 18389-010 is a thread forming tap designed for cutting M6x1.00 metric coarse internal threads in blind hole applications. Unlike cutting taps, this forming tap displaces material rather than removing it, producing stronger threads with no chips to clear from the hole. Built from high-speed steel with a bright uncoated finish, it is suited for use in ductile materials such as aluminum, copper, and mild steel. The bottoming chamfer with 1.5 threads of lead allows threading to the bottom of shallow blind holes. Overall length is 2.5 inches with a tapping depth of 1.0 inch, making it compatible with standard tap wrenches and CNC tapping attachments.

This tap is used in production machining, maintenance and repair, and fabrication environments where metric blind hole threading is required. The M6x1.00 thread size is common in automotive, HVAC equipment, electrical enclosure, and light structural assembly work. The BXMOTL series is designed for right-hand thread forming in blind holes where full thread engagement close to the bottom of the hole is necessary. A single oil groove aids lubricant delivery during the forming process, which is especially important when threading tougher ductile alloys.

Key Features

• Thread forming design displaces material rather than cutting it, producing chip-free, stronger threads
• Bottoming chamfer with 1.5P lead threads for threading close to the bottom of blind holes
• High-speed steel construction with bright uncoated finish for use in ductile materials
• M6x1.00 metric coarse thread form to 6H class of fit, D9 thread limit
• Single oil groove supports lubricant flow during forming
• Right-hand thread direction, shank diameter of 0.255 inches for standard tap holders

Compatibility

Designed as an OEM-style replacement or direct-use forming tap for M6x1.00 metric coarse blind hole threading applications in standard tap wrenches, tapping heads, and CNC spindles accepting a 0.255-inch round shank.

Installation Notes

Thread forming taps require a properly sized forming tap drill - consult a metric forming tap drill chart for the correct hole diameter before use, as standard metric drill sizes used for cutting taps will not apply. Apply cutting oil or tapping fluid rated for the workpiece material before and during the forming operation. Secure the workpiece before tapping and ensure the tap enters the hole squarely to avoid thread distortion or tap breakage. This tap is intended for installation by machinists, maintenance technicians, or experienced trade professionals familiar with tapping procedures.
