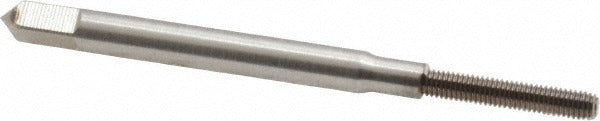

Balax 17342-010 Thread Forming Sti Tap M2 X 0.4 Bottoming Hss

Product Description

The BALAX 17342-010 is a thread forming STI tap designed for cutting M2 x 0.4 metric coarse internal threads in materials suitable for cold forming. Unlike cutting taps, this forming tap displaces material rather than removing it, producing stronger threads with no chips to clear. Built from high-speed steel with a bright uncoated finish, it carries a D2 thread limit and a bottoming chamfer for threading close to the bottom of blind holes. Overall length is 1.875 inches with a 0.5625-inch thread length, making it well suited for tight spaces and short-depth threading applications in precision assemblies.

This tap is used in manufacturing, maintenance, and repair operations where metric STI (Screw Thread Insert) threads are required. The bottoming chamfer allows threading to within a few pitches of a blind hole bottom, which is critical when installing helical thread inserts in components with limited material depth. It fits applications in aerospace, electronics, and general machining where M2 x 0.4 thread sizes are standard. A recommended 75 percent thread drill size of 0.091 inches should be used for hole preparation prior to tapping.

Key Features

• Thread forming design produces chip-free STI internal threads for use with helical thread inserts
• Bottoming chamfer enables threading near the base of blind holes
• D2 thread limit for controlled fit and insert compatibility
• High-speed steel construction for durability across a range of materials
• Bright uncoated finish suitable for use with standard tapping fluids
• Compact 1.875-inch OAL fits restricted-access drilling and tapping setups

Compatibility

Designed as an OEM-style STI thread forming tap for M2 x 0.4 metric coarse applications requiring helical thread insert preparation in blind or through holes.

Installation Notes

Installation is performed by machinists or maintenance technicians using a standard tap wrench or machine tapping setup. Ensure the workpiece is securely fixtured and the pilot hole is drilled to the specified 75 percent thread drill size of 0.091 inches before tapping. Apply appropriate tapping fluid for the workpiece material to reduce forming pressure and extend tool life. Do not force the tap if resistance is felt - back off to relieve pressure before continuing.
