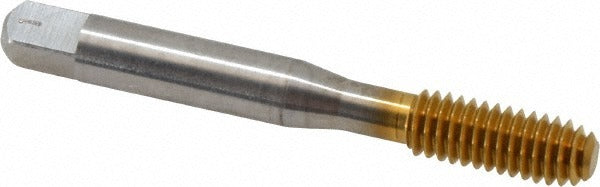

Balax 13084-01T Thread Forming Tap 5/16-18 Unc Bottoming Hss

Product Description

The BALAX 13084-01T is a thread forming tap designed to produce 5/16-18 UNC internal threads in ductile metals without cutting or generating chips. Using a cold-forming action, the tap displaces material to create strong, work-hardened threads in blind holes. Built from high-speed steel (HSS) with a titanium nitride (TiN) coating, the 13084-01T delivers added surface hardness and lubricity for extended tool life in production and maintenance tapping operations. The bottoming chamfer, at 2.5 threads, allows threading close to the bottom of a blind hole. Overall length is 2.7188 inches with a tapping depth of 1.125 inches.

This tap is suited for blind hole threading applications in ferrous and non-ferrous materials where chip-free thread forming is required. The BXB series bottoming configuration is commonly used in machine shops, manufacturing lines, and MRO environments where threading must reach near the bottom of a drilled hole. It is installed using standard tapping machines, CNC machining centers, or hand tap wrenches. The H4 thread limit ensures consistent tolerance control for production-run applications.

Key Features

• Thread forming (chipless) design produces strong, work-hardened threads without cutting chips
• Bottoming chamfer (2.5P) allows threading to within a few pitches of blind hole bottom
• TiN coating increases surface hardness and reduces friction for longer tool life
• H4 thread limit provides tight tolerance consistency for production tapping
• Single oil groove supports lubricant distribution during the forming process
• Right-hand thread direction, compatible with standard tapping equipment

Compatibility

Designed for blind hole threading applications producing 5/16-18 UNC right-hand threads in ductile materials. Part of the BALAX BXB series bottoming tap line.

Installation Notes

Thread forming taps require a slightly larger pilot hole than cutting taps - use the correct form tap drill size for 5/16-18 UNC to achieve proper thread engagement. Apply an appropriate tapping fluid or cutting oil before use; this is especially important with HSS tooling in production settings. Secure the workpiece fully before tapping, and ensure the tap is driven straight to avoid thread distortion or tool breakage. This tap should be installed and operated by a qualified machinist familiar with thread forming processes.
