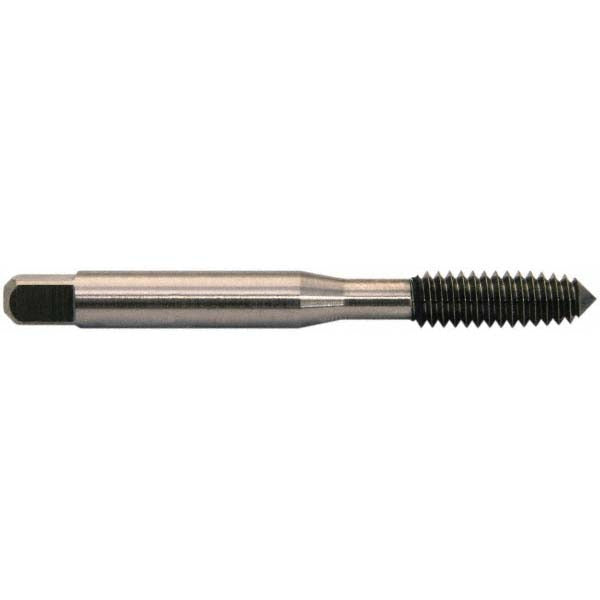

Balax 12426-000 Thread Forming Tap 12-24 Unc Plug Hss

Product Description

The BALAX 12426-000 is a thread forming tap designed for producing internal 12-24 UNC threads in ductile metals without cutting. Unlike cutting taps, thread forming taps displace material to create threads, resulting in stronger thread forms and no chip generation. This plug chamfer tap is ground to H6 thread limit with a bright uncoated finish and is manufactured from high-speed steel (HSS). It measures 2.375 inches overall length with a 0.22-inch shank diameter and is suited for through-hole threading applications. Machinists, toolroom technicians, and production shop operators install this tap in hand tap handles or machine tapping chucks.

This tap is used in through-hole threading operations on ductile materials such as aluminum, copper, mild steel, and similar metals where chip-free thread production is preferred. The plug chamfer with 4 chamfered threads makes it appropriate for machine tapping and hand tapping in through-holes. It is part of the BALAX BXP series, which targets production tapping environments where thread quality and tool life are priorities. Applications span general machining, fabrication shops, and maintenance operations requiring 12-24 UNC threaded holes.

Key Features

• Thread forming (chipless) design produces stronger threads by displacing rather than cutting material
• 12-24 UNC right-hand thread form with H6 thread limit and Class 2B fit
• Plug chamfer with 4 chamfered threads for machine or hand tapping in through-holes
• High-speed steel construction provides good wear resistance across a range of ductile materials
• Bright uncoated finish suitable for use with appropriate tapping fluid or cutting oil
• Single oil groove design aids lubrication during the forming process

Compatibility

Designed as an OEM-style replacement or direct substitute for 12-24 UNC plug chamfer thread forming taps used in standard through-hole tapping applications in ductile metals.

Installation Notes

Thread forming taps require adequate lubrication with a suitable tapping fluid or cutting oil to prevent galling and extend tool life. The tap should be installed in a properly aligned tap handle or machine tapping chuck to avoid cross-threading or tap breakage. Always ensure the workpiece is securely fixtured before tapping. Thread forming taps are not suitable for use in brittle materials such as cast iron or hard steels.
