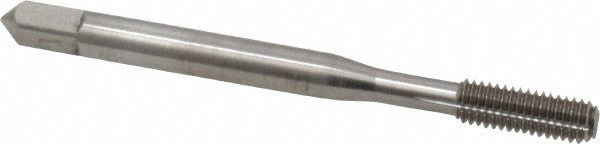

Balax 12225-010 Thread Forming Tap 10-32 Unf 2B

Product Description

The BALAX 12225-010 is a thread forming tap in the BXOTL series, designed for cutting 10-32 UNF internal threads in blind holes. Unlike cutting taps, this forming tap displaces material rather than removing chips, producing stronger threads with better surface finish. It is made from high-speed steel with a bright uncoated finish and carries a 2B class of fit with an H5 thread limit. The bottoming chamfer - 1.5 thread pitches - allows threading close to the bottom of a blind hole. Machinists and tool and die technicians use this tap in precision blind-hole applications where thread integrity and dimensional consistency are critical.

The 12225-010 is suited for blind hole threading in materials that respond well to thread forming, such as softer steels, aluminum, and other ductile metals. With a thread length of 0.6 inches and a tapping depth of 0.875 inches, it is well matched to shallow-to-mid-depth blind holes in production and repair environments. The right-hand thread direction and standard square drive make it compatible with tap handles, tapping heads, and CNC machine spindles used in general machining and maintenance operations.

Key Features

• Thread forming design displaces material rather than cutting chips, resulting in stronger formed threads
• Bottoming chamfer (1.5P) allows threading to near the bottom of blind holes
• 10-32 UNF thread form with 2B class of fit and H5 thread limit for consistent dimensional accuracy
• High-speed steel construction with bright uncoated finish
• Single oil groove design aids lubrication during the forming process
• Right-hand thread direction, compatible with standard tap drives and tapping equipment

Compatibility

Designed as an OEM-style thread forming tap for blind hole threading applications requiring a 10-32 UNF, 2B class of fit thread in ductile workpiece materials.

Installation Notes

Thread forming taps require the correct tap drill size for the specific material and thread form - consult published forming tap drill charts before drilling the pilot hole. Apply a suitable tapping fluid or cutting oil to reduce forming torque and extend tap life. Secure the workpiece firmly and ensure the tap is started square to the hole to prevent thread misalignment or tap breakage. Always use appropriate personal protective equipment when operating tapping equipment.
