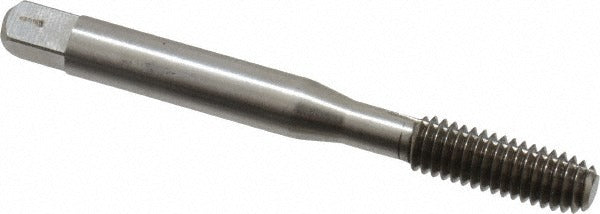

Balax 12082-010 Thread Forming Sti Tap 10-24 Unc H2

Product Description

The BALAX 12082-010 is a thread forming STI tap designed for cutting 10-24 UNC internal threads in steel insert applications. Unlike cutting taps, thread forming taps displace material rather than removing it, producing stronger threads with no chips to clear. This tap features a bottoming chamfer, making it suitable for threading to the bottom of blind holes. It is manufactured from high-speed steel with a bright uncoated finish and carries an H2 thread limit for controlled thread tolerance. Overall length is 2.5 inches, with a 1-inch thread length and a shank diameter of 0.255 inches. It is used by machinists, maintenance technicians, and toolroom professionals working with threaded inserts.

This tap is intended for use in STI (Screw Thread Insert) applications where a helical coil insert, such as a wire thread insert, will be installed after tapping. The bottoming chamfer allows threading close to the bottom of a blind hole, making it appropriate for repair work and OEM production where full thread depth is required. The H2 thread limit suits standard tolerance requirements for most STI insert installations in ferrous and non-ferrous materials.

Key Features

• Thread forming design displaces material for chip-free operation and stronger thread forms
• Bottoming chamfer enables threading to the base of blind holes
• H2 thread limit provides controlled tolerance for consistent STI insert fit
• High-speed steel construction offers durability across a range of workpiece materials
• Bright uncoated finish suitable for use with standard cutting fluids
• Square drive end compatible with standard tap wrenches and holders

Compatibility

Designed for STI thread insert applications requiring a 10-24 UNC tap with H2 thread limit and bottoming chamfer. Part of the BXSTI series by BALAX. Recommended 75 percent thread drill size is 0.221 inches.

Installation Notes

This tap should be installed by a qualified machinist or maintenance technician familiar with thread forming operations. Secure the workpiece before tapping and apply an appropriate cutting or forming fluid for the workpiece material. Use a calibrated torque-limiting tap wrench or tapping machine to avoid tap breakage, particularly in blind hole applications. Always verify hole depth and drill diameter against the recommended 75 percent thread drill size prior to tapping.
