Backer Ehp ch679 Bake Element 2200W 240V Oven

Product Description

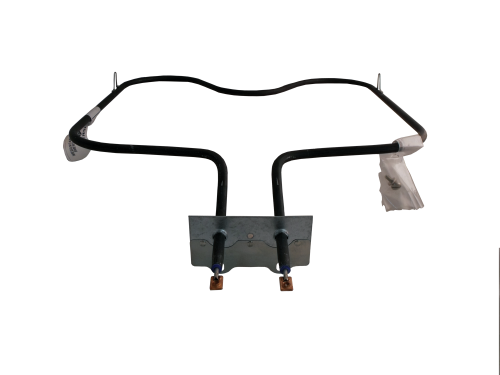

The BACKER EHP ch679 is a direct-replacement bake element designed for residential oven service. Rated at 2200 watts and 240 volts, it mounts to the back wall of the oven cavity using screws and rests securely on the oven floor via integrated support tabs. The element measures 15.625 inches in length, 13.31 inches in width, and features a 2.5-inch insert depth. Terminations are 0.25-inch male quick connects, which simplify removal and reinstallation without soldering or wire splicing. The ch679 is manufactured to dimensional and performance standards that meet or exceed original equipment specifications.

This bake element is suited for residential range and wall oven applications where the original element has failed due to burnout, cracking, or open-circuit faults. It is a drop-in replacement for units originally equipped with the 184-2E30 element configuration. The mounting pattern, tab positions, and insert depth are matched to the original to ensure a proper fit without modification. Appliance technicians and experienced DIYers handling oven component service will find the quick-connect terminals and screw-mount design straightforward to work with.

Key Features

• 2200W at 240V for full bake-cycle heating performance
• Screw-mount attachment to the oven back wall with support tabs that rest on the oven floor
• 0.25-inch male quick-connect terminals for tool-free wire reconnection
• 2.5-inch insert depth matched to OEM mounting configuration
• Dimensions of 15.625 x 13.31 inches engineered to OEM fit and finish standards
• Direct replacement for the 184-2E30 bake element specification

Compatibility

Direct replacement for ovens originally equipped with the 184-2E30 bake element. Designed as an OEM-style replacement for residential range and wall oven bake elements using this mounting and terminal configuration.

Installation Notes

Bake element replacement is typically performed by a qualified appliance service technician. Before beginning any work, disconnect power to the range or wall oven at the breaker or by unplugging the unit — never work on a live appliance. Remove existing mounting screws, disconnect the quick-connect terminals, and reverse the process for installation. Confirm the insert slides fully into the oven back wall port before securing mounting screws to avoid stress on the terminals.

Technical Specifications

• Wattage: 2200W
• Voltage: 240 volts
• Length: 15.625 inches
• Width: 13.31 inches
• Insert Depth: 2.5 inches
• Terminal Type: 0.25-inch male quick connect
• Mounting: Screw-mount to oven back wall with floor support tabs

Standard Information

• Brand: BACKER EHP
• Manufacturer Part Number: ch679
