B-Line B3373-4PLN Riser Clamp 4 PLN

Product Description

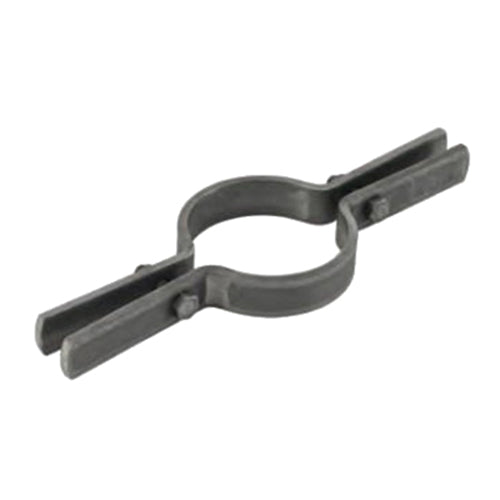

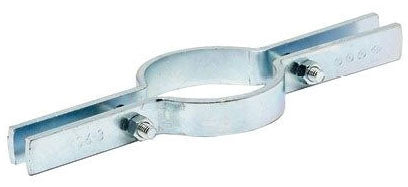

The B-Line B3373-4PLN is a robust riser clamp designed for vertical piping applications. This clamp has a nominal size of four inches and an overall length of twelve and seven-eighths inches. The clamp is constructed from steel, ensuring durability and strength. It features a plain finish and is rated to support loads up to eight hundred ten pounds.

• Pipe Size: 4 inches
• Overall Length: 12-7/8 inches
• Load Rating: 810 pounds

Product Highlights

This riser clamp is suitable for use in mechanical installations and other vertical piping applications. The B3373 series complies with various industry standards, making it a reliable choice for professionals.

Product Information

Standard Information

• Manufacturer: B-Line
• Material: Steel

Technical Specifications

• Clamp Type: 2-Piece, Riser, Standard
• Screw/Bolt Size: 1/2 Inch-13 TPI x 1-3/4 Inch
• Temperature Rating: 650 Deg F
• Applicable Standards: Federal Specification WW-H-171E/A-A-1192A, ANSI/MSS SP-69/58, UL (Canada and US), FM
• Number of Screws/Bolts: 2
