B-Line B3033-1/2PLN C-Clamp 1/2-13 1-1/4in 750/1130lb PL

Product Description

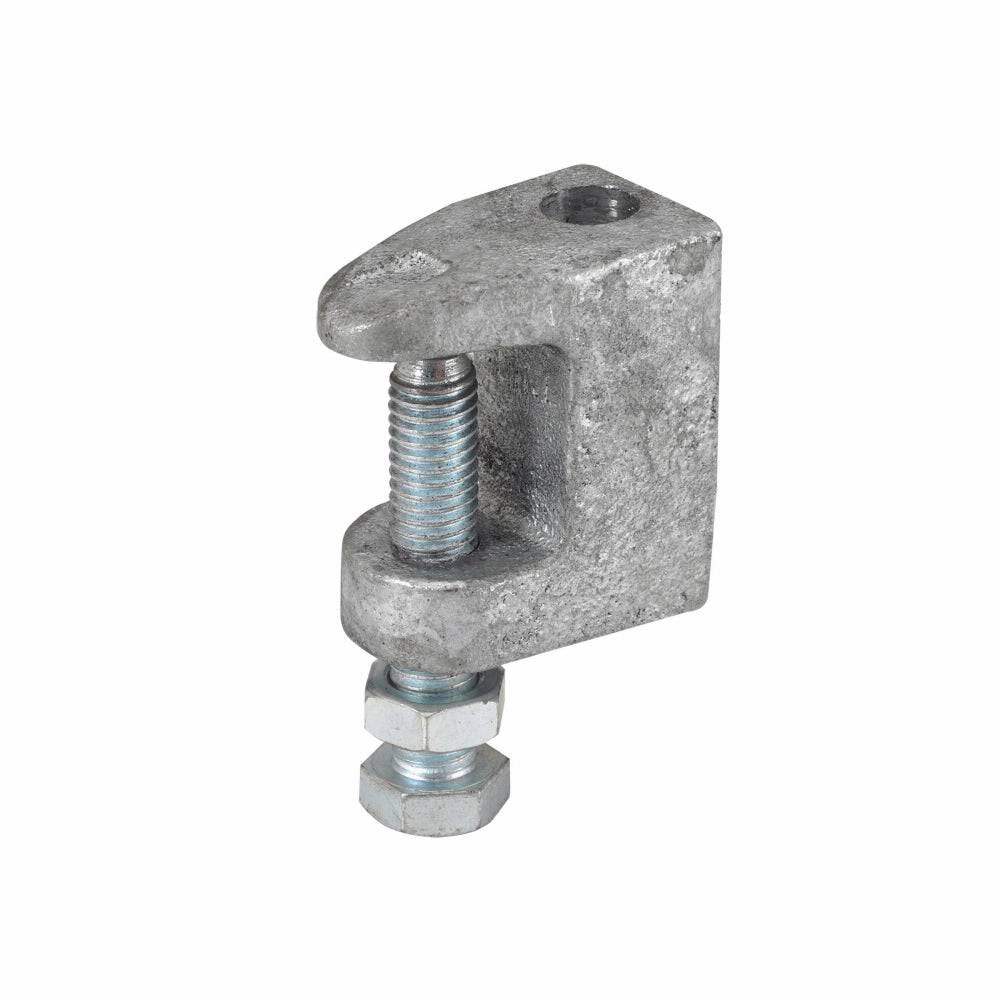

The B-Line B3033-1/2PLN is a wide jaw reversible C-clamp designed for structural applications. It accommodates a 1/2-13 rod and supports a load capacity of 750 to 1130 pounds. Fabricated from cast malleable steel, this clamp is ideal for use with pipe hangers and is suitable for various construction and installation environments.

• Load capacity of 750/1130 pounds depending on the set screw position
• Compatible with 1/2-13 threaded rods
• Dimensions: 2-5/16 inches in length, 1-1/4 inches in width, and 2-3/16 inches in height

Product Highlights

This C-clamp is built to provide secure connections in situations requiring a wider throat, especially under bar joist construction.

Product Information

Standard Information

• Brand: B-Line
• Manufacturer: Eaton

Technical Specifications

• Catalog Number: B3033-1/2PLN
• Material: Cast Malleable Steel
• Flange Thickness: 1-1/4 inches
• Rod Size: 1/2-13
• Load Capacity: 750/1130 pounds
• Suitable For Use With: Pipe Hanger
• Specifications: 8 inch pipe
• Country of Origin: China
