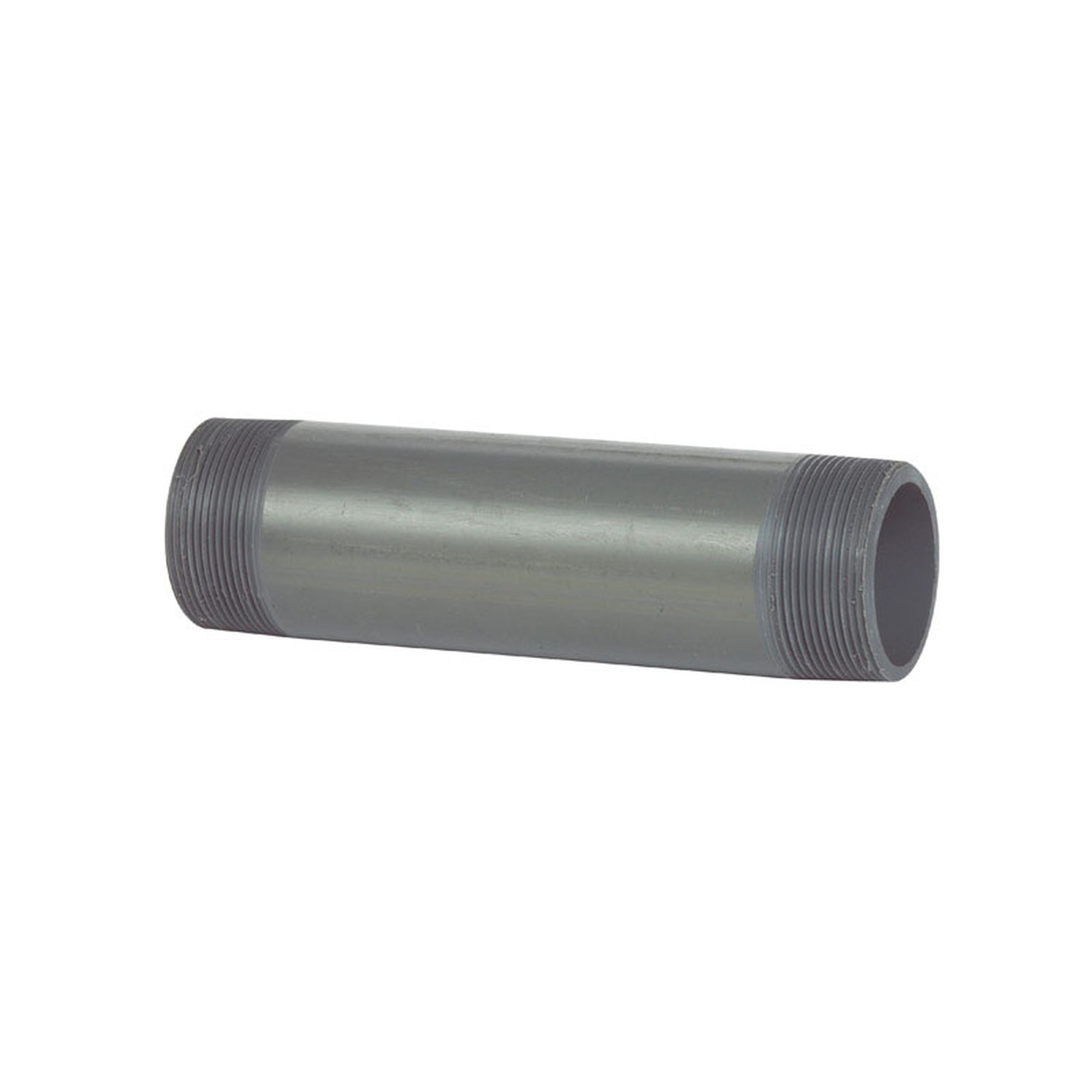

B&K 408-080 2X8 PVC80 nipple

Product Description

The B&K 408-080 2X8 PVC80 Nipple can be used in a variety of applications for transport of water and other liquids. The Schedule 80 PVC construction features superior resistance to acids, solvents, and oils. It meets ASTM specifications D1785 and pipe threads made to ANSI B1.20.1.

• Made in the USA
• Can be used in both Schedule 40 and Schedule 80 piping systems
• Resistant to mild acids, solvents and oils

Product Highlights

The B&K Schedule 80 PVC nipple has smooth interior walls for unobstructed flow and is ideal for pressure applications.

Product Information

Standard Information

• Brand: B&K
• Manufacturer Part Number: 408-080
• Country of Origin: USA

Technical Specifications

• Schedule Type Number: Schedule 80
• End 1 Type: MPT
• ANSI Certified: Yes
• IAPMO Certified: No
• Number in Package: 1 pk
• Application: Pressure Applications
• Maximum Pressure: 200 psi
• Length: 8"
• End 1 Diameter: 2"
• Average Lead Content: Lead-Free
• Product Type: Nipple
• Material: PVC
• NSF Listed: Yes
• Each Weight: 0.600 LB
• Velocity: C
• Hazardous Material: No
• Inlet Diameter (in): 2
• Inlet Connection: MIP
• Outlet Diameter (in): 2
• Outlet Connection: MIP
• Product Length (in): 8.00
• Product Height (in): 2.38
• Product Width (in): 2.38
• Product Weight (lbs): 0.6300
• Working Pressure (PSI): 40
• Minimum Temperature ( F): 32
• Working Temperature ( F): 73
• Maximum Temperature ( F): 140
• Product Material: PVC
• End 2 Diameter: 2 in.
• End 2 Type: MIP
• Brand: B&K
