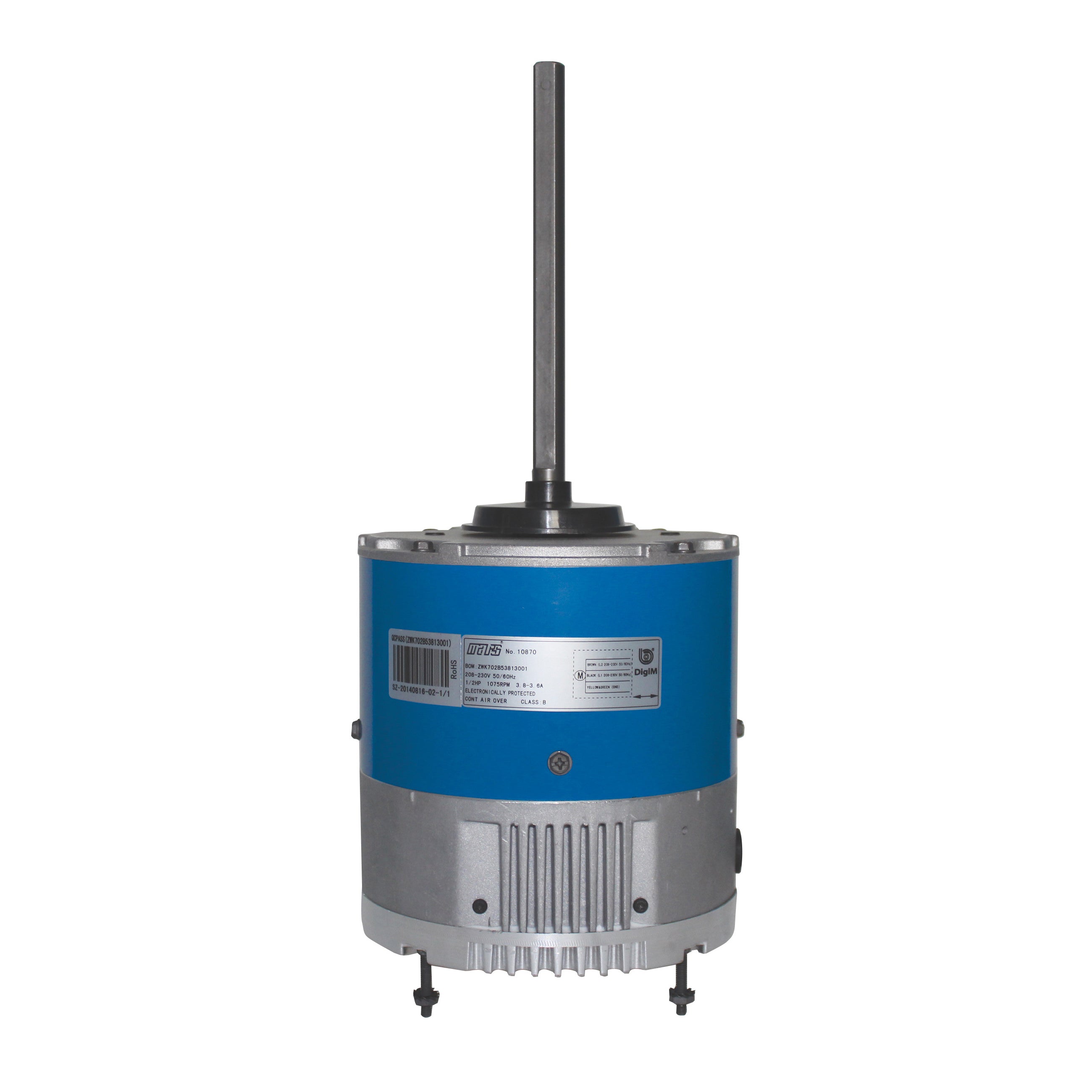

Azure by Mars 10870 Digi-Motor 1/3 to 1/2 hp 230 VAC 50/60 Hz

Product Description

The Azure by Mars Digi-Motor 10870 is designed as a condenser fan motor, effectively covering a range of applications. This motor provides a horsepower rating from one-third to one-half, operating at two different speeds of eight hundred twenty-five to one thousand seventy-five RPM. It uses a closed air over enclosure and operates at two hundred thirty volts on a single phase.

• Efficient ECM technology without a capacitor
• Includes an outboard surge protector
• Easy installation with various operating modes

Product Highlights

The Azure motor employs advanced electronic control for reliability and ease of use in different setups.

Product Information

Standard Information

• Brand: Azure by Mars
• MPN: 10870

Technical Specifications

• Frame Size: 48
• Phase: 1 ph
• Speed: 825/1075 rpm
• Rotation: CW/CCW
• Horsepower: 1/3 to 1/2 hp
• Shaft Size: 0.5 in Dia x 6.96 in L
• Bearing Type: Ball
• Mounting Type: Stud
• Enclosure Type: Closed Air Over
• Voltage Rating: 230 VAC
• Amperage Rating: 3.8/3.6 A Full Load
• Frequency Rating: 50/60 Hz
• Insulation Class: Class B
• Temperature Rating: -32 to 55 deg C
