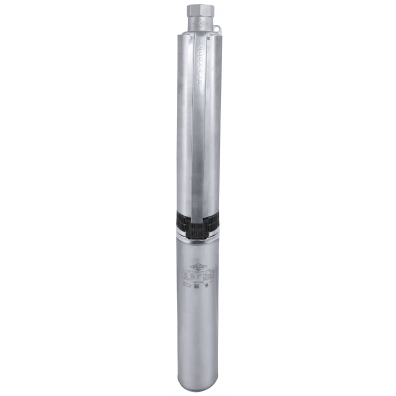

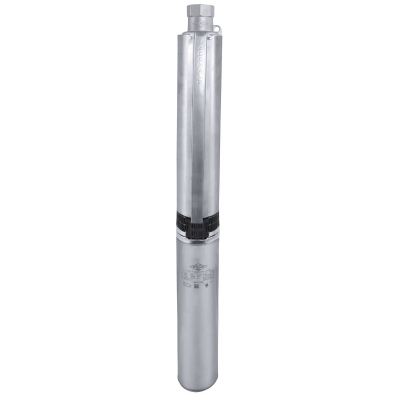

Ay Mcdonald 6622-092 Submersible Pump 1 Hp 230V 7 Gpm

Product Description

The AY MCDONALD 6622-092 is a stainless steel submersible well pump packaged with a liquid-filled control box, rated at 1 horsepower and designed for 230-volt, 3-wire electrical service. Built for residential and light commercial water supply applications, this unit delivers up to 7 gallons per minute (GPM) of flow capacity. The stainless steel construction provides resistance to corrosion in groundwater environments. Licensed well pump installers and plumbing contractors are the primary trades that select and install this type of equipment. The included control box simplifies wiring and startup by housing the run and start capacitors in a single enclosure.

This submersible pump is suited for residential water well systems where reliable, continuous-duty performance is required. Typical installations involve dropping the pump assembly into a drilled well casing and connecting it to a pressure tank system. The 3-wire configuration with a separate control box is a standard setup commonly used in residential well applications, allowing easier motor servicing without pulling the pump from the well. The 7 GPM flow rate supports household demand in single-family and small multi-family settings.

Key Features

• 1 HP motor rated for continuous submersible duty in well applications
• 230-volt, 3-wire electrical configuration with separate liquid-filled control box included
• 7 GPM maximum flow rate suitable for residential water supply systems
• Stainless steel construction for corrosion resistance in groundwater environments
• Liquid-filled control box houses capacitors and protects components in varied installation conditions

Compatibility

Designed as an OEM-style submersible well pump for residential and light commercial drilled well systems requiring a 3-wire, 230-volt, 1 HP pump configuration.

Installation Notes

Installation should be performed by a licensed well pump contractor or plumbing professional in accordance with local codes and NEC requirements for submersible pump wiring. Disconnect and lock out all electrical power before handling the pump, control box, or drop pipe connections. The control box must be mounted above grade in a protected location and wired per the manufacturer wiring diagram. Never run the pump dry, as submersible motors rely on the pumped water for cooling.

Technical Specifications

• Motor Power: 1 HP
• Voltage: 230 volts
• Wiring Configuration: 3-wire
• Flow Rate: 7 GPM
• Material: Stainless Steel
• Control Box: Liquid-filled, included

Standard Information

• Brand: AY MCDONALD
• Manufacturer Part Number: 6622-092
