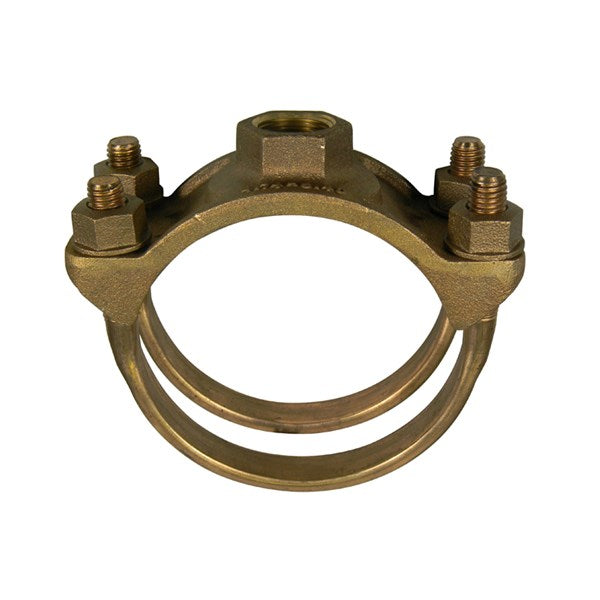

Ay Mcdonald 4148-011 3826 6x2 Double Bronze Bale Saddle

Product Description

The AY McDonald 4148-011 3826 6x2 Double Bronze Bale Saddle is a water works service saddle made of durable brass. It is designed for a pipe diameter of 6 inches, accommodating an outside diameter range of 6.84 to 7.50 inches, and features a 2-inch FNPT tapped outlet. This double bronze bale saddle is equipped with an EPDM O-ring for reliable sealing. It is suitable for service line connections to ductile iron, asbestos-cement, or cast iron OD pipe water mains, with a pressure rating up to 200 psig.

• Made of brass with a double bronze bale design.
• Equipped with an EPDM O-ring for reliable sealing.
• Suitable for 6-inch pipe diameter (6.84-7.50 O.D. Range) with a 2-inch FNPT tapped outlet.

Product Highlights

Durable brass service saddle for water mains, featuring a double bronze bale design and EPDM O-ring for secure connections.

Product Information

Standard Information

• Brand: AY MCDONALD
• Manufacturer Part Number: 4148-011
• Country of Origin: USA

Technical Specifications

• Part Type: Saddle
• Model: 3826
• Saddle Material: Brass
• Nominal Size: 6 x 2 in
• Pipe O.D. Range: 6.84-7.50
• Saddle Type: Double Bronze Bale
• Tapped Outlet: 2 inch FNPT
• Gasket Material: EPDM
• Clamp Material: Cast Brass
• Pressure Rating: 200 psig
• Schedule Rating: SCH 40/STD or SCH 80/XH
• Dimensions: 4.19 in W
• Compatible Pipe Materials: Ductile Iron, Asbestos-Cement, Cast Iron O.D. Pipe
