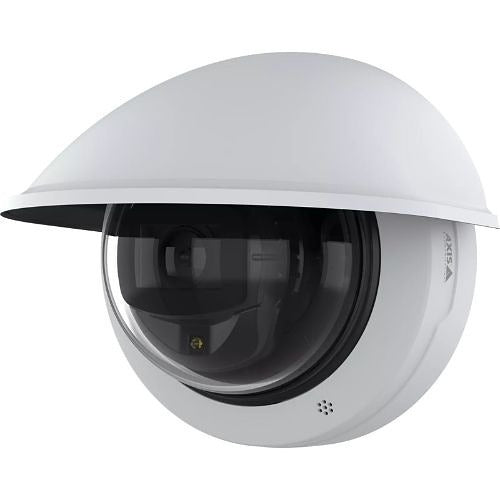

Axis Communications 02814-001 2MP Ip Dome Camera

Product Description

The AXIS COMMUNICATIONS 02814-001 is a 2-megapixel outdoor IP dome camera built for professional surveillance installations. This unit is the M4225-LVE model, featuring a varifocal lens for flexible field-of-view adjustment, onboard AI-based video analytics, and integrated infrared illumination for low-light and nighttime coverage. The housing carries an IP66 ingress protection rating for dust and water resistance and an IK10 impact resistance rating, making it suited for demanding outdoor and semi-exposed indoor environments. Security integrators and commercial installers are the primary trades that specify and mount this camera.

The 02814-001 is designed for outdoor perimeter monitoring, building entrances, parking areas, and other locations where weather exposure and vandal resistance are required. The varifocal lens allows installers to fine-tune the angle of view during commissioning without swapping optics. The AI analytics capability supports on-camera detection tasks, reducing the processing load on a central NVR or VMS. This makes the unit well-suited for both standalone deployments and larger networked video systems in commercial and light-industrial settings.

Key Features

• 2-megapixel image sensor for full HD resolution capture
• Varifocal lens with adjustable field of view for flexible site commissioning
• Onboard AI analytics for edge-based video intelligence
• Integrated IR illumination for nighttime and low-light operation
• IP66-rated housing resists dust ingress and water jets
• IK10 impact resistance rating for vandal-resistant installations

Compatibility

Designed as an OEM network IP dome camera intended for use within compatible ONVIF-conformant NVR and VMS platforms. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation is typically performed by licensed low-voltage security or structured cabling contractors. Power down or de-energize the PoE switch port before connecting or disconnecting the camera. Follow local electrical codes and the NEC for low-voltage wiring practices. Mount to a solid surface capable of supporting the camera housing weight and verify conduit sealing at the back box to maintain the IP66 rating.
