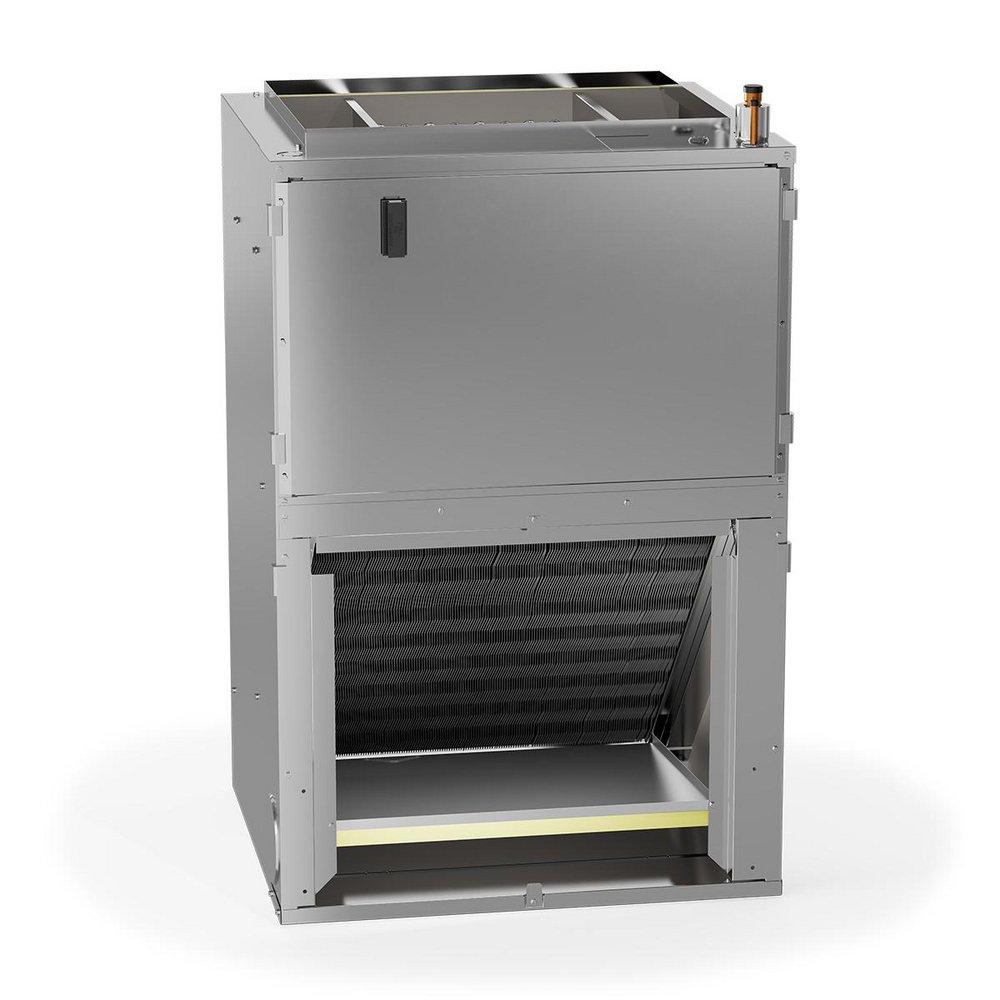

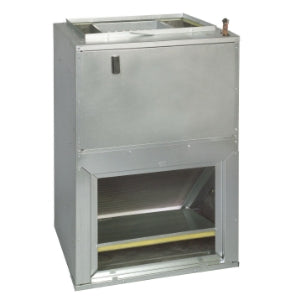

Goodman AWST36LU1410 3 Ton - Vertical - Air Handler

Product Description

The Goodman AWST36LU1410 is a three-ton vertical air handler. It features a multi-speed ECM motor to adjust airflow for heating and cooling. The unit has a nominal cooling capacity of thirty-six thousand BTU per hour, designed specifically for use with R-410A refrigerant.

• Includes a factory-installed TXV for efficient refrigerant metering.
• Constructed with an all-aluminum evaporator coil and thermoplastic drain pan.
• Equipped with sequence-controlled, rust-resistant nickel chromium heating elements.

Product Highlights

Designed for residential applications, this wall-mounted air handler features a built-in filter rack and wall hanging bracket for easier installation. It complies with industry standards, making it a reliable choice for HVAC professionals.

Product Information

Standard Information

• Brand: Goodman
• MPN: AWST36LU1410

Technical Specifications

• Cooling Capacity: 36000 BTU
• Heater Wattage: 10 kW
• Nominal Capacity: 3 ton
• Voltage: 208/230 V
• Dimensions: 16-1/8 inches L x 20-3/16 inches W x 36 inches D
• Weight: 108.5 lbs
• Refrigerant Type: R-410A
• AHRI Certified: Yes
• ETL Listed: Yes
