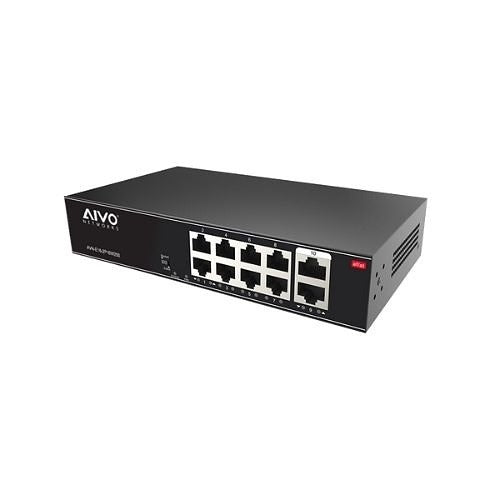

Avycon AVN-E08-2P08W120 Network Switch 8+2 Port 120W

Product Description

The AVYCON AVN-E08-2P08W120 is a 10-port unmanaged network switch designed for professional low-voltage installations in commercial and residential security, surveillance, and access control systems. It provides eight 10/100 Mbps PoE-capable ports plus two uplink ports, with a total PoE power budget of 120 watts. The switch delivers network connectivity and inline power to IP cameras, access control readers, VoIP devices, and similar PoE-powered endpoints from a single unit. Licensed low-voltage technicians and security integrators are the primary installers of this device.

This switch is well suited for small-to-medium IP camera deployments, intercom systems, and access control networks where both data and power delivery to edge devices are required over a single Cat5e or Cat6 cable run. Its compact form factor supports installation in equipment racks, enclosures, or wall-mount locations at the edge of a structured cabling system. The eight PoE ports accommodate up to eight powered devices simultaneously within the 120W total budget.

Key Features

• Eight 10/100 Mbps PoE ports plus two additional uplink ports for a total of 10 ports
• 120W total PoE power budget shared across all active PoE ports
• 10/100 Mbps Fast Ethernet speed on all PoE ports
• Single-unit solution delivers both data and inline power to connected devices
• Compact design suitable for rack, enclosure, or surface-mount installation

Compatibility

Designed as an OEM-style replacement or new-install switch for IP-based surveillance, access control, and low-voltage network applications requiring 10/100 Mbps PoE connectivity.

Installation Notes

Installation should be performed by a licensed low-voltage or network technician familiar with structured cabling standards and local electrical codes. Power down the switch before connecting or disconnecting uplink cables to core switching infrastructure. Verify that the total power draw of all connected PoE devices does not exceed the 120W budget before commissioning. Follow TIA-568 cabling standards and applicable local codes when running Cat5e or Cat6 patch and home-run cabling to this device.
