Avycon AVC-NCMS201M04 360 Degree Ip Dome Camera

Product Description

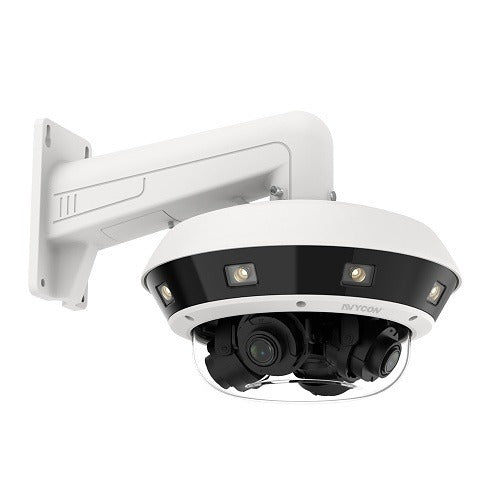

The AVYCON AVC-NCMS201M04 is a 360-degree IP dome camera built for continuous wide-area surveillance coverage. It features a dual-lens design with a 5-megapixel resolution per sensor, delivering high-detail imaging across a full panoramic field of view. The variable focal range of 2 to 12 millimeters supports flexible installation distances for both tight and expansive scenes. AI-based analytics are integrated into the unit, enabling on-device processing for applications such as motion detection and object classification. Rated IP67 for dust and water ingress protection and IK10 for impact resistance, this camera is suited for demanding indoor and outdoor environments. Security integrators and surveillance technicians are the primary installers.

The AVC-NCMS201M04 is designed for professional IP video surveillance installations where a single camera must cover a broad area without blind spots. Its 360-degree panoramic capture makes it well suited for open floor plans, parking structures, lobbies, warehouses, and perimeter applications where multiple standard cameras would otherwise be required. The IK10 vandal resistance rating adds suitability for public-facing or high-traffic locations. This is a network-connected camera that integrates into IP-based video management systems.

Key Features

• 360-degree panoramic dual-lens design eliminates blind spots across wide coverage zones
• 5-megapixel resolution per lens for high-detail image capture
• 2 to 12 millimeter variable focal length supports flexible mounting distances
• On-board AI analytics for motion detection and object-based processing
• IP67-rated enclosure resists dust ingress and water immersion
• IK10 impact resistance rating suitable for vandal-prone or high-traffic areas

Compatibility

Designed for integration into professional IP-based video management systems and network video recorder platforms that support standard ONVIF or RTSP streaming protocols.

Installation Notes

Installation should be performed by a qualified security integrator or low-voltage technician familiar with IP camera commissioning. Power down the network switch port or PoE injector before making wiring connections. Verify that the mounting surface can support the camera weight and that conduit or cable pathways meet local low-voltage wiring codes. Configure network settings and AI analytics parameters through the camera web interface or compatible VMS software before finalizing the installation.
