Avycon AVC-ELN81FT/2.8 4K 8.4MP Ip H.265 Ir Camera

Product Description

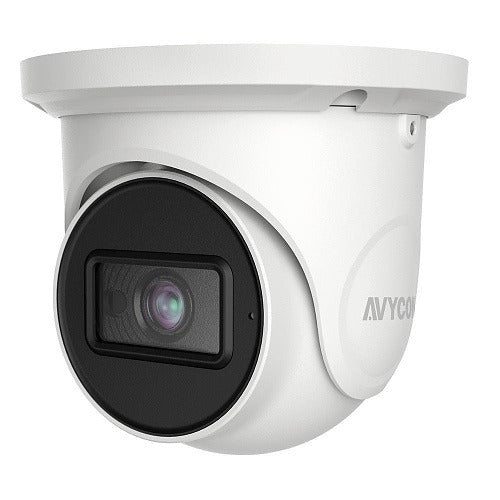

The AVYCON AVC-ELN81FT/2.8 is a 4K fixed turret network camera delivering 8.4 megapixels of IP video over H.265 compression with built-in infrared illumination. Designed for professional surveillance installations, it captures high-resolution imagery in both daylight and low-light conditions using its IR night vision capability. The H.265 codec reduces bandwidth and storage requirements compared to older compression standards, making it well-suited for NVR-based systems where storage efficiency matters. Security integrators and low-voltage technicians are the primary installers for this type of device.

This camera is suited for indoor and outdoor fixed surveillance applications in residential, commercial, and light industrial environments. The turret form factor allows for discreet mounting on ceilings or walls with a low-profile footprint. It connects to IP-based NVR systems and is appropriate for installations requiring high-definition video coverage at a single fixed angle. The 2.8mm lens designation indicates a wide field of view, making it a practical choice for room coverage and entry-point monitoring.

Key Features

• 4K resolution at 8.4 megapixels for high-detail image capture
• H.265 video compression reduces storage and bandwidth demands
• Built-in infrared illumination for low-light and no-light imaging
• Fixed turret housing with 2.8mm wide-angle lens
• NDAA-compliant design for installations with federal procurement requirements
• IP network connectivity for integration with NVR recording systems

Compatibility

Designed for use with IP-based NVR systems that support H.265 video streams and ONVIF-compatible network camera connections.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician familiar with IP camera network configuration and NVR setup. Power down or disconnect the network switch port before making wiring connections. Ensure the mounting surface is structurally sound and that conduit or cable routing meets local low-voltage wiring codes. Do not expose the camera to voltages or environmental conditions outside of the manufacturer-specified ratings.
