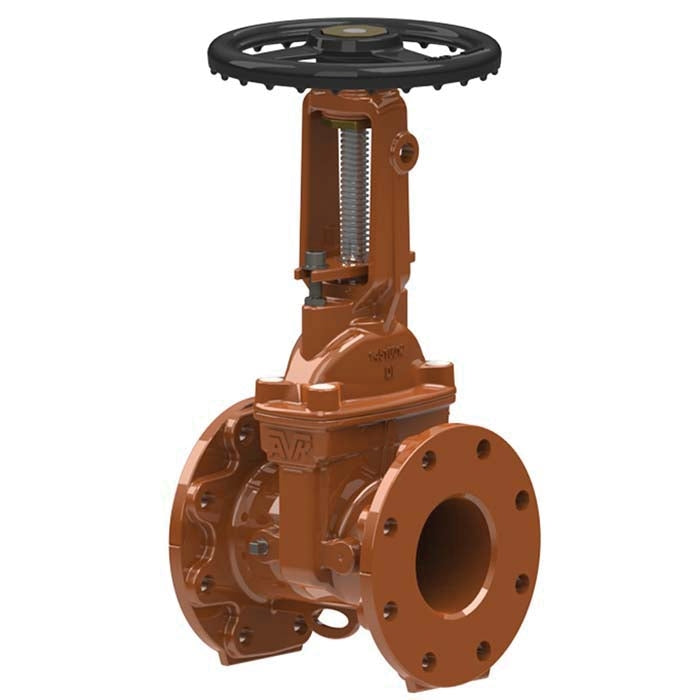

AVK 145-200-FFO Gate Valve Class 150 8 in

Product Description

The AVK 145-200-FFO is an eight-inch, Class 150 ductile iron gate valve made by American AVK. This valve features a fusion bonded epoxy coating for enhanced corrosion resistance, making it suitable for fire protection applications.

• Durable ductile iron construction
• Electrostatically applied fusion bonded epoxy
• ANSI/ASME B16.42 compliant

Product Highlights

This gate valve is designed for reliability in critical fire protection systems. Its unique slim wedge design reduces the effort needed for operation.

Product Information

Standard Information

• Brand: AVK
• Manufacturer: American AVK

Technical Specifications

• Connection Size: 8 in
• Connection Type: Flanged
• Dimension: 11-1/2 in L
• Finish: Fusion Bonded Epoxy Coated
• Item Name: Gate Valve
• Material Specifications: ASTM A276, ASTM A536
• Material: Ductile Iron
• Operator Type: Ductile Iron Handwheel
• Pressure Class: Class 150
• Pressure Rating: 250 psi
• Series: 145
• Stem Material: 304 Stainless Steel
• Type: OS and Y
