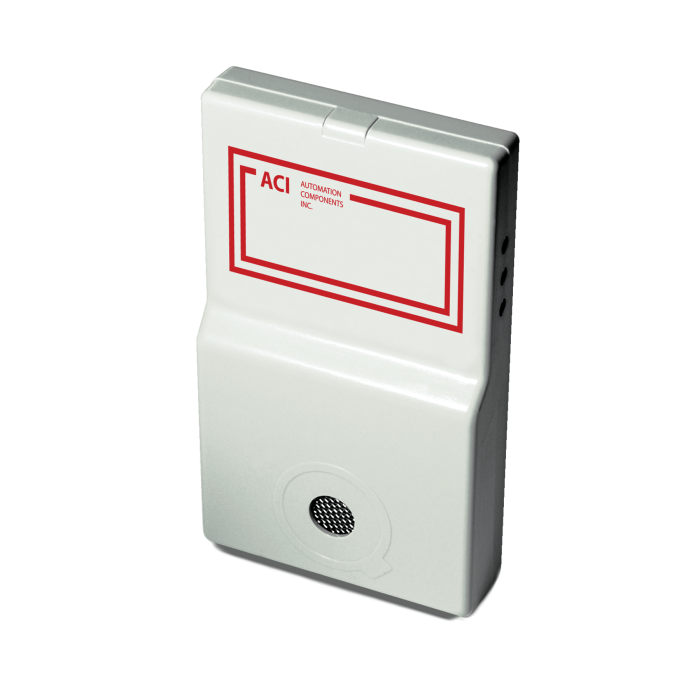

AUTOMATION COMPONENTS-ACI ACI/CO-R Carbon Monoxide Sensor

Product Description

The AUTOMATION COMPONENTS-ACI ACI/CO-R is a carbon monoxide sensor designed for room installation. It measures carbon monoxide levels in the environment with a standard range of zero to one hundred twenty-five parts per million (PPM) and a maximum capacity of two hundred fifty PPM. This sensor outputs both four to twenty milliamp and two to ten volts direct current for flexible integration with various monitoring systems.

• Measures carbon monoxide levels efficiently and accurately.
• Provides analog outputs for seamless system integration.
• Ideal for indoor air quality monitoring.

Product Highlights

Engineered to monitor carbon monoxide effectively, this sensor ensures safety in residential and commercial spaces.

Product Information

Standard Information

• Brand: AUTOMATION COMPONENTS-ACI
• MPN: ACI/CO-R

Technical Specifications

• Factory Set Range: 0 - 125 ppm / 0 - 250 ppm Field Adjustable
• Supply Voltage: 24 VAC +/- 10% Floating; 24 VAC +/- 10%, One side Grounded; 24 VDC
• Supply Current: 100 mA nominal | 250 mA maximum
• Power Consumption: 6.6 Watts maximum
• Operating Temperature Range: -4°F to 104°F (-20°C to 40°C)
• Operating Humidity Range: 15 to 90% RH Continuous, non-condensing; 0 to 99% RH Intermittent, non-condensing
• Coverage Area: 7500 sq. ft
• Response Time: Less than 60 Seconds for 90% of step change
• Sensor Life: Approximately 5 years under normal conditions
• Unit Dimensions: (H) 6.00 inches x (W) 3.5 inches x (D) 1.09 inches
• Product Weight: 0.62 lbs (281.2 g)
• Application: Suitable for use in industrial settings, oil and gas facilities, laboratories, agriculture, transportation, and mining.
