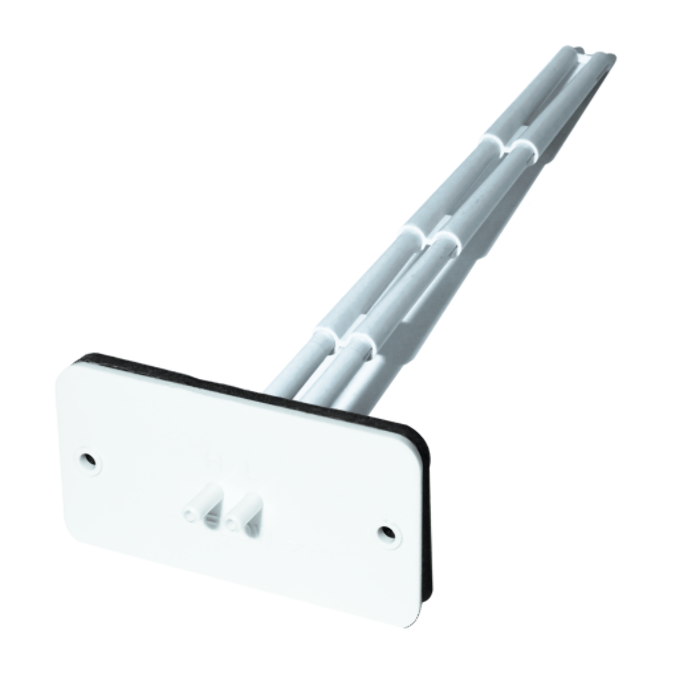

Auto Components PT9.7 Plastic Pitot Tube 9.7 in.

Product Description

The Auto Components PT9.7 is a plastic pitot tube measuring nine point seven inches. This device is essential for monitoring fan operation and true airflow in HVAC systems. It is designed to sense airflow velocity in variable air volume and other small ducts commonly found in modern HVAC applications.

• Used to monitor fan operation
• Suitable for small ducts
• Includes foam gasket

Product Highlights

This pitot tube features a three sixteenths inch outer diameter connection designed for one quarter inch outer diameter poly tubing. It is recommended for duct sizes ranging from ten inches to eighteen inches and includes four sets of sensing points.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: PT 9.7

Technical Specifications

• Recommended Duct Size: 10 inches to 18 inches
• Connection Size: 3/16 inch OD
• Sensing Points: 4 sets
• Application: Non-critical airflow monitoring
• Installation Note: Mount with arrow facing airflow
