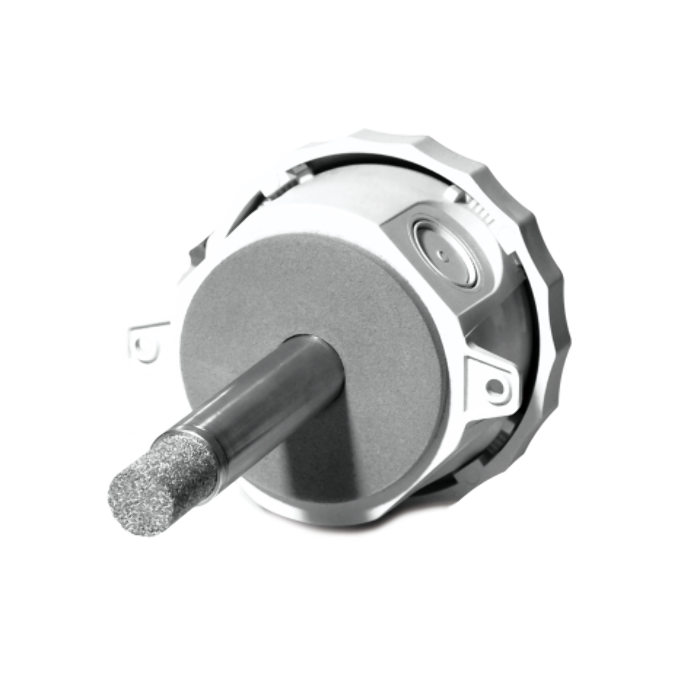

Auto Components A/RH3-CP-D Duct Humidity Sensor

Product Description

The Auto Components A/RH3-CP-D is a duct humidity sensor designed for HVAC applications. This sensor effectively manages humidity levels in environments such as schools, hospitals, clean rooms, and data centers.

• 3% Accuracy with a 10K Type II Thermistor
• Weatherproof Euro enclosure for moisture resistance
• Field-selectable output signals and easy calibration options

Product Highlights

The sensor is suitable for humidification and dehumidification applications. It features a thermoset polymer capacitive sensing element and an easy field calibration system.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: A/RH3-CP-D

Technical Specifications

• Mounting: Duct Mount
• Enclosure: Euro
• Configuration: Duct
• Sensors Application: Humidity
• Temperature Sensor Type: 10K Type II
• Output Voltage Signal Range: 0 To 5 V, 0 To 10 V, 4 To 20 mA
• Load Resistance: 250 ohm
• Supply Voltage: 15-40 VDC / 18-28 VAC
